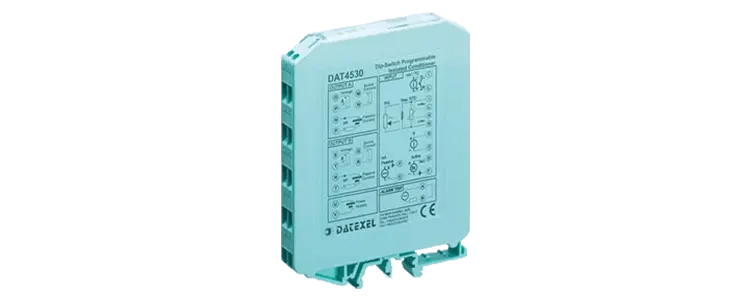

  • DAT4530 4 to 20mA Signal Splitter Image
  • DAT4530 FEATURES
    4 - 20mA Signal Splitter.
    • Universal Input.
    • mA, mV, Volts.
    • RTD's Pt100, Pt1000, Ni100, Ni1000.
    • Potentiometer, Resistance.
    • Output 2 X Voltage or Current.
    • PC Programable.
    • DIP Switch Configurable.
    • Trip Amplifier.
    • Limit Alarm.

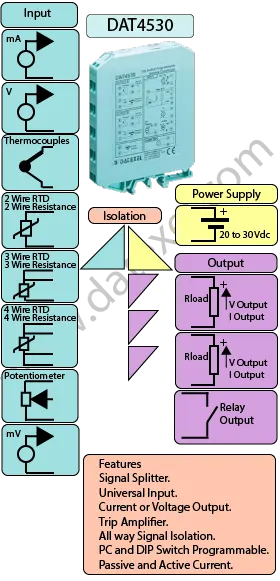

  • DAT4530 4 to 20mA Signal Splitter Input Output layout

4-20mA Signal Splitter DAT4530

General Description

The DAT4530 is a 4-20mA Signal Splitter converts any universal input signal into two analog outputs. The Input can be a Current (mA), Voltage (mV, Volts), Thermocouple, RTD, Resistance or Potentiometer. The output is selectable from Current (mA) or Voltage and can be different from each other i.e. Channel one output can be 4-20mA and Channel 2 output can be 0-10 Volts.

All round Galvanic isolation is standard so both outputs are galvanic isolated from each other and from the Power supply and the input. This galvanic isolation will negate ground loop problems and reduce noise normally found in heavy industrial environments.

Full redundancy is enabled as each output does not affect the other output or the input even if the circuit is open circuited. The outputs are boosted so that they can drive into a load of 500 Ohms. The current input can be wired as a passive or active input meaning it can power up a 2 wire transmitter. The current output can also drive the 4-20mA or sink the 4-20mA. Sinking is normally used when connecting to a PLC or a DCS. An auxiliary power supply is also standard.

Options that are standard and only need selecting are Square root extraction, Linearization, Trip Alarm and high speed output.

The Signal Splitter is DIP switch programmable and PC Programmable.

INPUT
mA, Thermocouples, RTD, Voltage, Potentiometer, Resistance.
OUTPUT
Current 4-20mA, 0-20mA 0-10V.
1 Relays.
POWER SUPPLY
Power Supply Voltage 18-32VDC
Reverse polarity protection 60Vdc
CURRENT CONSUMPTION
35 mA
CONFIGURATION
PC Configurable.
DIP Switch Configurable.
Isolation
Between Input/Output 2000Vac.
Between Input/Power Supply 2000Vac.
Between Power Supply/Output 1500Vac.
EMC
For Industrial environments
Immunity EN 61000-6-2
Emission EN 6100-6-4
HOUSING
Material self-extinguishing
Dimensions W X H X L
3 1/2" x 4 1/2 " x 1/2"
90 x 112x x 12.5 mm
Weight 3 oz 90 g
TEMPERATURE
Operating Temperature -4°F +140°F -20°C +60°C
Storage Temperature -40°F +185°F-40°C +85°C
Humidity (non condensing) 0-90%



Specifications

Input: K Type Thermocouple, J Type Thermocouple, R Type Thermocouple, S Type Thermocouple, T Type Thermocouple. Potentiometer, Resistance, RTD, mV, V, mA. See Data sheet for range.
Output: 4-20mA, 0-20mA, 0-10V. Active and Passive
Power Supply: 18 to 30 Vdc. Reverse polarity protection 60 Vdc.
Current Consumption: Current output 35 mA max. Voltage output 25 mA max.
Temperature rating: Operative- 4°F +158°F - 20°C +70°C
  Temperature Storage Temperature - 40°F +185°F - 40°C +85°C.
Humidity: (none Condensing) 0-90%.
Housing: Material Self-extinguishing.
Dimensions: 3 1/2" x 4 1/2 " x 1/2", 90 x 112x x 12.5 mm.
Weight: 3 oz 90 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.
Configuration: PC Configurable and DIP Switch Configurable

Drawings

Input
Thermocouple Positive L and Negative I
mV Positive L and Negative I
Volts Positive E and Negative C
mA Active Positive D and Negative F
mA Passive Positive F and Negative C
RTD 2 wire G and I.
RTD 3 wire I and H with compensating wire G
RTD 4 wire Terminals 1 Comp 4 and Terminals 2 Comp 3
Resistance 2w G and I.
Resistance 3w I and H with compensating wire G
Potentiometer G and I with wiper H.
Output A
Current Active Positive M Negative N.
Current Passive Positive N Negative P.
Voltage Positive O Negative P
Output B
Current Active Positive Q Negative R.
Current Passive Positive R Negative T.
Voltage  Positive S Negative T
Current Active Positive M Negative N.
Current Passive Terminals A and C
Power supply Positive U Negative V.
Output
Relay 0 Normally Open A, Common B,

4 to 20mA signal splitter Wiring Diagram


Applications

  • 4 to 20mA Signal Splitter.
  • Thermocouple Signal Splitter.
