Modbus Analog Output Modules.

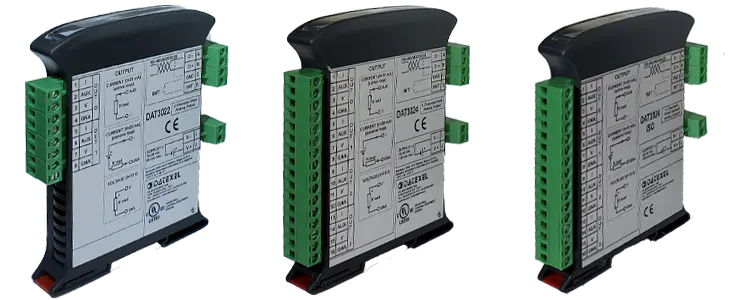

The DAT3020 series from Datexel is a range of analog output cards. These cards or modules have both voltage and current outputs either 0-10V or 4-20mA and are isolated from the input, output and power supply. They are available with either 2, 4 or 8 channels. The DAT3011 is a Modbus slave with 2 analog inputs (Thermocouple, RTD's mA, Resistance, Potentiometers, mV and voltage) and 2 analog outputs(4-20mA). It also has 3 digital inputs and outputs. Combining these analog output cards with the analog input cards, and the digital io cards with the DAT9000 controllers make Datexel the smart choice where Data Acquisition is needed.



Analog Output Modules
  Signal Conditioning Modbus RTU DAT3011 DAT3022RS485 RS232 to 4-20mA Output DAT3022RS485 DAT3024RS232
  Modbus RTU with Analog and digital inputs and outputs. 2 Analog outputs input RS485. 2 Analog outputs input RS232. 4 Analog outputs input RS485. 4 Analog outputs input RS232.
Input Universal and mA, Voltage/RS485 RS485 RS232 RS485 RS232
Output RS485/Universal and mA,Voltage Voltage and Current Voltage and Current Voltage and Current Voltage and Current
Channels 2 Analog Input 2 Analog Output 3 Digit Outputs 3 Digital Inputs

2 Output

2 Output

4 Output

4 Output

Isolated Yes Yes Yes Yes Yes
Information Page Signal Conditioning Modbus RTU DAT3011 Modbus to 4-20mA Output Module DAT3022. RS232 to 4-20mA Output DAT3022 RS232 RS485 to Voltage & Current Converter RS232 to Voltage & Current Converter
Buy On Line Signal Converter to RS485 RS485 to Voltage & Current Converter RS232 to Voltage & Current Converter RS485 to Voltage & Current Converter RS232 to Voltage & Current Converter
Download Datasheet PDF DAT3011 data sheet DAT3022 data sheet DAT3022 data sheet DAT3024 data sheet DAT3024 data sheet



Analog Output Modules
  DAT3028RS485 DAT3028RS232
  8 Analog outputs input RS485. 8 Analog outputs input RS232.
Input RS485 RS232
Output Voltage Voltage
Channels

8 Output

8 Output

Isolated Yes Yes
Information Page RS485 to Voltage Converter RS232 to Voltage Converter
Buy On Line RS485 to Voltage Converter RS232 to Voltage Converter
Download Datasheet PDF DAT3028 data sheet DAT3028 data sheet
