  • RTD Trip Amplifier DAT5024R2
  • DAT5024 R2 FEATURES

    • Input RTD's Pt100, Pt1000, Ni100, Ni1000.
    • Output Two Relay.
    • DIN Rail Mounted.
    • Isolated.

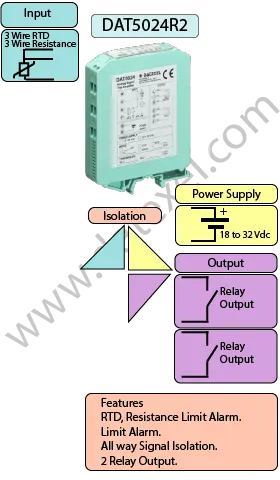

RTD Trip Amp DAT5024R2

General Description.

The DAT5024R2 is a Din Rail mount RTD Trip Amplifier. It accept signals from Resistors and RTD's. The Threshold 1 is programmed as high alarm, while, by dip-switches, it is possible to set the Threshold 2 either as high or low alarm. The trip level of each threshold can be adjusted by the potentiometers and checked by the test-points located on the front of the device. It is possible to adjust the values of the hysteresis level and delay time by potentiometers .

The DAT5024R2 has 2000 Vac isolation between the RTD inputs and the relay contacts.
The DAT5024R2 has isolations of 2000 Vac between the power supply and the RTD inputs.
The RTD input is isolated from the relay contacts by 1500Vac.
The DAT5024 is in compliance with the standard 89/336/EEC on the Electromagnetic Compatibility. It is housed in a plastic enclosure of 20.5 mm thickness suitable for DIN rail mounting in compliance with EN-50022 and EN-50035 standards.

INPUT
RTD Pt100, Pt1000, Ni100, Ni1000.

OUTPUT
2 Relay
POWER SUPPLY
Power Supply Voltage 18-30Vdc
Reverse polarity protection 60Vdc
CURRENT CONSUMPTION
120 mA
CONFIGURATION
On Order
ISOLATION
Input-Power Supply 2000Vac 50Hz, 1min.
Input-Contacts 2000Vac 50Hz, 1min.
Power Supply-Contacts 1500Vac 50Hz, 1min.
EMC
For Industrial environments
Immunity EN 61000-6-2
Emission EN 6100-6-4
HOUSING
Material self-extinguishing
Dimensions W X L X H
3 1/2" x 4 1/2" x 1/2"
90 x 112x x 12.5 mm
Weight 3 oz 90 g
TEMPERATURE
Operating Temperature -4°F +140°F -20°C +60°C
Storage Temperature -40°F +185°F-40°C +85°C
Humidity (non condensing) 0-90%



Specifications

Input Pt100, Pt1000, Ni100, Ni1000, V, mA, Ohms. See Data sheet for range.
Output: Relay 2 SPDT Relay.
Power Supply: 18 to 32 Vdc
Temperature rating: Operative- 4°F +158°F - 20°C +60°C
  Temperature Storage Temperature - 40°F +170°F - 40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material self-extinguishing.
Dimensions: Diameter 1 3/4 " Height 15/16 " 42 mm X 24mm
Weight: 3 oz 90 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.

Drawings

Input
RTD 3 wire Terminals N and O Compensation M
Resistance 3 wires Terminals N and O Compensation M
Thermocouple Terminals + N and - P
Volts Positive N Negative P
mA Passive Positive O Negative P
mA Active Positive M Negative O
Power supply Positive +V Q Negative -V R
Output
Relay 0 Normally Closed G, Common L, Normally Open I.
Relay 1 Normally Closed F, Common E, Normally Open H.

Resistance Trip Amp wiring Diagram


Applications

  • Pt1000 Limit Alarm.
  • RTD Trip Amp..
  • Resistance Trip Amplifier.
  • Ohms Limit Alarms.
