• Signal Conditioner with Trip Amplifier DAT5028.

    • Universal Input
    • Output 2 or 4 Relays.
    • Current and Voltage Output
    • DIP Switch Configurable
    • PC Programmable
    • DIN Rail Mounted

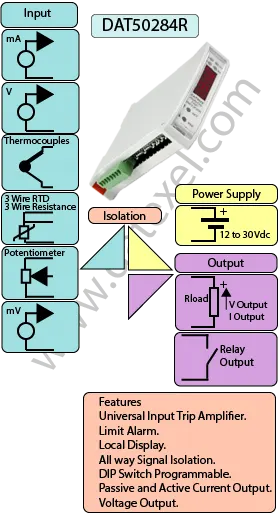

  • Signal Conditioner with Trip Amplifier Block Diagram

Signal Conditioner with Trip Amplifier DAT5028

General Description.

The DAT 5028 is a Signal Conditioner with 2 or 4 relay outputs (Trip Amplifier).

The DAT5028 Signal Conditioner also converts thermocouples, RTD's, potentiometers, voltage or current input to either a voltage 0-5V, 0-10V or 4-20mA, 0-20mA output.

With the aid of the local 4 digit display and the DIP Switches each trip point can be set by using the switches on the front panel.

The current input, output can be passive or active loop.

There is 1500 Vac Isolation between inputs, outputs and the power supply.

Thermocouples, RTD's, Voltage, Potentiometers, Resistance mA.
2 Relay or 4 Relays
Power Supply Voltage 9-30VDC
Reverse polarity protection 60Vdc
120 mA
DIP Switch Selection.
Between Input/Output/Power Supply 1500Vac, 50 Hz for 1 Minute.
For Industrial environments
Immunity EN 61000-6-2
Emission EN 6100-6-4
Material self-extinguishing
Dimensions W X L X H
3 1/2" x 4 1/2" x 1/2"
90 x 112x x 12.5 mm
Weight 3 oz 90 g
Operating Temperature -4°F +140°F -20°C +60°C
Storage Temperature -40°F +185°F-40°C +85°C
Humidity (non condensing) 0-90%




K Type Thermocouple, J Type Thermocouple, R Type Thermocouple, S Type Thermocouple, T Type Thermocouple. RTD, mV, V, mA.

See Data sheet for range.

Output: Analog 4-20mA. 0-10V
Output: Relay 2 X SPDT Relays and 2 SPST Relays.
Power Supply: 12 to 30 Vdc
Temperature rating: Operative- 4°F +158°F - 20°C +70°C
  Temperature Storage Temperature - 40°F +185°F - 40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material Self-extinguishing.
Dimensions: Diameter 1 3/4 " Height 15/16 " 42 mm X 24mm
Weight: 3 oz 90 g.
EMC. For industrial environments.
Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.
Configuration: DIP Switch Configurable and PC Programmable.


RTD 3 wire Terminals 4 and 2 Compensation 1
Resistance 3 wires Terminals 4 and 2 Compensation 1
mV Terminals + 2 and - 3
Thermocouple Terminals + 2 and - 3
Volts Positive 5 Negative 7
mA Passive Positive 6 Negative 7
mA Active Positive 6 Negative 8
Power supply Positive +V A Negative -V B
Voltage Positive F Negative E
Current Active Positive N Negative M
Current Active Positive C Negative E
Relay 0 Normally Closed G, Common I, Normally Open H.
Relay 1 Normally Closed J, Common L, Normally Open K.
Relay 2 Common N, Normally Open M.
Relay 3 Common P, Normally Open O.
Relay 1 NC E, Com F, NO H.

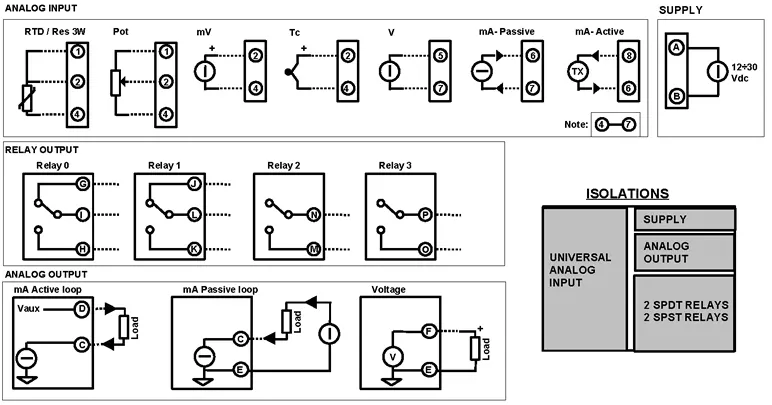

DAT5028 wiring Diagram
