AC Current Transducer.

DAT5023IAC B

AC Current Converter

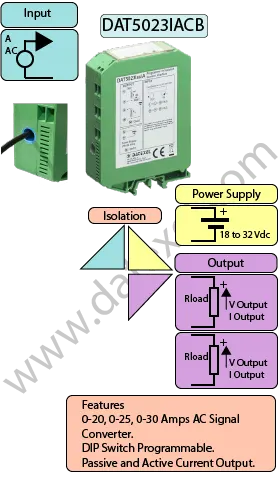

AC Current Transducer DAT5023IAC B. AC Current converter with cable.
• AC Current Transducer.
• DIP Switch Programmable (only output).
• Input 0-20Amp ac.
• Input 0-25Amp ac.
• Input 0-30Amp ac.
• Output mA, Volts.
• DIN Rail Mounted.
General Description

The AC Current Transducer DAT5023IAC B is designed to detect the TRMS value of the AC current signal from 0-20A, 0-25A and 0-30 A applied on its input, providing a voltage or current output signal.
The user can program the input and output ranges by the DIP-switches located on the side of device.
The regulation of Zero and Span values are made by the zero and span potentiometers located on the top of the device.
The DAT5023I AC provides on the output side an auxiliary supply source to connect both active and passive loads.
Other versions are available.
DAT5023 I AC version A

  • 0-5Amp.
  • 0-10Amp.

DAT5023 I AC version C

  • 0-40Amp.
  • 0-50Amp.
  • 0-60Amp.

The DAT5023IAC is accurate to 0.1% full scale and has less than 0.01%/°f thermal drift.
The 2000 Vac isolation between input, power supply and output eliminates the effects of all ground loops and allows the use of the Transducer in heavy environmental conditions found in industrial applications.
The DAT5023IAC provides a power supply on the output side so both active and passive loads can be connected.
The DAT5023IAC is in compliance with the standard 89/336/CEE on the Electromagnetic Compatibility.
The DAT5023IAC is housed in a plastic enclosure of 27.5 mm thickness suitable for DIN rail mounting in compliance with EN-50022 and EN-50035 standards.

INPUT OUTPUT POWER SUPPLY
AC Current 0-20 Amp, 0-25 Amp, 0-30 Amp. Current 4-20mA, 0-20mA. Power Supply Voltage 18-30Vdc
Other ranges available to order Voltage 0-10V, 0-5V, 2-10V, 1-5V. Reverse polarity protection 60Vdc
CURRENT CONSUMPTION CONFIGURATION ISOLATION
Between 50 and 80 mA DIP Switches Programmable Between Input/Comms/Power Supply 2000Vac.
EMC HOUSING TEMPERATURE
For Industrial environments Material self-extinguishing Operating Temperature -4°F +140°F -20°C +60°C
Immunity EN 61000-6-2 Dimensions W x H x T 3 1/2" x 4 1/2" x 1 1/8" Storage Temperature -40°F +185°F-40°C +85°C
Emission EN 6100-6-4 90 x 112x x 27.5 mm Humidity (non condensing) 0-90%
Weight 6 oz 170 g

Specifications

Input: Current 0-20 Amp, 0-25 Amp, 0-30 Amp.
Output: Voltage 0-10V, 0-5V, 2-10V, 1-5V.
Current 4-20mA, 0-20mA.
Power Supply: 18 to 32 Vdc. Reverse polarity protection 60 Vdc.
Current Consumption: Current output 35 mA max. Voltage output 25 mA max.
Temperature rating: Operative -4°F +158°F -20°C +70°C
  Temperature Storage Temperature -40°F +185°F -40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material self-extinguishing.
Dimensions: 3 1/2" x 4 1/2 " x 1/2", 90 x 112x x 12.5 mm.
Weight: 3 oz 90 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.
Configuration: PC Configurable and DIP Switch Configurable
Drawings

AC Current Input

Input:
Current In and out
Output:
Voltage Positive N Negative M
Current Passive Positive P Negative M
Current Active Positive O Negative P
Power Supply +Vdc Q GND1 R
DAT5023IAC B wiring Diagram.
Applications

DAT5023IAC B Custom made products.

What is a DAT 5023IAC B 100613?
The DAT5023IAC B 100613 can accept an input range of 0 to 15 Amps ac.
