CANopen Modules (CAN bus) - Analog and Digital I/O

The Datexel DAT7000 series offers a comprehensive range of CANopen-compliant (CAN bus) I/O modules for industrial automation.

CANopen analog and Digital Input and Output Modules
  1. Datexel
  2. CANopen Modules Analog and Digital I/O DAT7000

Explore the DAT7000 Series

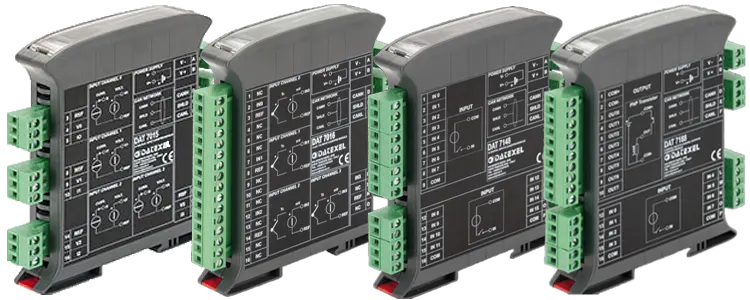

The Datexel DAT7000 Series provides high-performance CANopen I/O modules built on the standard CAN bus physical layer. These modules simplify the integration of analog and digital signals in CANopen networks and are ideal for process control, energy management, building automation, and remote monitoring.

All modules are DIN rail mountable, support galvanic isolation, and offer high-speed communication over CANopen protocol.


CANopen Slave Device RTD, Resistance and Potentiometer
Buy online $293
CANopen Slave Device RTD, Resistance and Potentiometer

Input 4 Channel. RTD, Resistance or Potentiometer.
CANopen Resolution 16 Bit

DAT7014 Datasheet
CANopen Slave Device Voltage and Current
Buy online $266
CANopen Slave Device Voltage and Current

Input 4 Channel. Voltage or mA.
CANopen Resolution 16 Bit

DAT7015 Datasheet
CANopen Slave Device Thermocouple and mV input
Buy online $314
CANopen Slave Device Thermocouple and mV input

Input 4 Channel. mV or Thermocouple.
CANopen Resolution 16 Bit

DAT7016 Datasheet
CANopen Slave Device Current and Voltage Output
Buy online $277
CANopen Slave Device Current and Voltage Output

Input CANopen
Output mA or Volts

DAT7024 Datasheet
CANopen Slave Device Digital Inputs and Outputs
Buy online $288
CANopen Slave Device Digital Inputs and Outputs

Input 8 Digital
Output 4 Relays

DAT7130 Datasheet
CANopen Slave Device Digital Inputs
Buy online $257
CANopen Slave Device Digital Inputs

Input 16 Digital
CANopen

DAT7148 Datasheet

CANopen CANbus Slave Device Digital input and Digital Output
Buy online $282
CANopen CANbus Slave Device Digital input and Digital Output

Input 8 Digital
Output 8 PNP.

DAT7188 Datasheet


Frequently Asked Questions – DAT7000 Series

The DAT7000 series consists of CANopen (CAN bus) I/O modules from Datexel that support analog input, analog output, and digital I/O signals for automation systems.

All DAT7000 modules communicate using the CANopen protocol, which is ideal for distributed control networks and fieldbus systems.

Yes, all analog input and output channels are galvanically isolated from the CAN bus and power supply for maximum signal integrity and safety.

The DAT7000 modules support RTDs (PT100, PT1000), thermocouples, current (4-20mA), voltage (0-10V, ±10V), and digital inputs/outputs depending on the model.
