Trip Amplifier and Process Limit Alarms

Datexel offers a compact range of PROFINET IO Slave modules designed for industrial automation and digital I/O control. The DAT11188PN and DAT11130PN allow seamless integration into PROFINET networks, providing reliable input/output management over Ethernet.

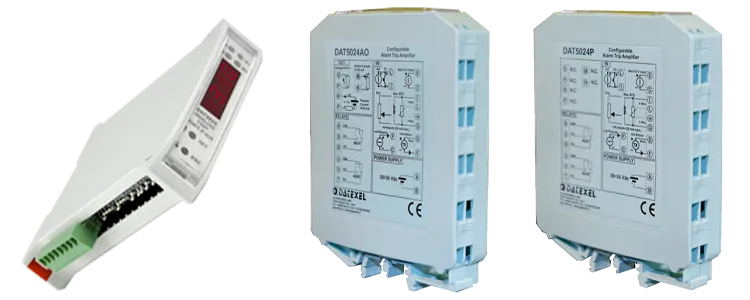

Range of Process Limit Alarms.
A trip amplifier is a device that monitors analog signals and activates a relay output when the measured value exceeds defined limits. It is commonly used to control physical processes—such as temperature or current—by triggering actuators, alarms, or shutdown sequences.

What Does Datexel Offer?
Datexel provides a wide selection of Trip Amplifiers and Process Limit Alarms designed to accept universal inputs—including RTDs, thermocouples, resistance, voltage, and current signals—and deliver relay outputs for process control.

These models are ideal for safety interlocks, process alarms, and system automation requiring fast, reliable trip responses.
Trip Amplifiers with RTD's, Thermocouple, Resistance, Voltage and mA Input.
Programmable Trip Alarm
Buy online $225 Programmable Trip Alarm

Input RTD, T/C's, Resistance, Current, Voltage.
Output 2 Relay.

DAT5024P Datasheet
Process Limit Alarm with Analog Output
Buy online $250 Process Limit Alarm with Analog Output

Input RTD, T/C's, Resistance, Current, Voltage.
Output 2 Relay and Analog Output.

DAT5024AO Datasheet
Signal Conditioner with Trip Amplifier
Buy online $347 Signal Conditioner with Trip Amplifier

Input RTD, T/C's, Resistance, Current, Voltage, Pot.
Output 2 Relay

DAT5028 2R Datasheet
Signal Conditioner with Trip Amplifier
Buy online $356 Signal Conditioner with Trip Amplifier

Input RTD, T/C's, Resistance, Current, Voltage, Pot.
Output 4 Relay

DAT5028 4R Datasheet
Intrinsically Safe Trip Amplifiers
Intrinsically Safe Trip Amplifier Din Rail
Not Available Intrinsically Safe Trip Amplifier DAT4235ISB

Input Thermocouples, RTD, Potentiometer, mA Resistance, mV.
Output Relay

DAT4235ISB Datasheet
Intrinsically Safe Signal Converter, Limit Alarm
Not Available Intrinsically Safe Signal Converter and Limit Alarm DAT4235ISC

Input T/C's, RTD, Potentiometer, mA Resistance, mV.
Output Relay, V & I

DAT4235ISC Datasheet
Trip Amplifiers for Temperature Sensors
RTD Trip Amp
Not Available RTD Trip Amp

Input RTD, T/C's, Resistance, Current, Voltage.
Output 1 Relay

DAT5024 R1 Datasheet
RTD Trip Amplifier
Not Available RTD Trip Amplifier

Input RTD, T/C's, Resistance, Current, Voltage.
Output 2 Relay

DAT5024 R2 Datasheet
Thermocouple Trip Amp
Not Available Thermocouple Trip Amp

Input RTD, T/C's, Resistance, Current, Voltage.
Output 1 Relay

DAT5024 T1 Datasheet
mV Trip Amp
Not Available mV Trip Amp

Input RTD, T/C's, Resistance, Current, Voltage.
Output 2 Relay

DAT5024 T2 Datasheet
Trip Amplifiers with Volts and Current input.
Voltage Trip Amplifier
Not Available Voltage Trip Amplifier

Input Current 4-120mA Voltage 0-50mV, 0-100mV 0-10V.
Output 1 Relay.

DAT5023V1 Datasheet
Current Trip Amp
Not Available Current Trip Amp

Input Current 4-120mA Voltage 0-50mV, 0-100mV 0-10V.
Output 2 Relay.

DAT5023V2 Datasheet
mA Limit Alarm
Not Available mA Limit Alarm

Input Current, and Voltage.
Output 1 Relay

DAT5024 E1 Datasheet
Process Limit Alarm
Not Available Process Limit Alarm

Input Current, Voltage.
Output 2 Relay

DAT5024 E2 Datasheet

Trip Amplifier and Process Limit Alarm FAQs

A trip amplifier monitors analog input signals and triggers a relay output when the signal crosses a predefined threshold. It’s used for over/under limit alarms and control actions in automation systems.

Datexel trip amplifiers accept universal inputs such as RTDs, thermocouples, resistance, voltage, and current signals.

Yes, most models can be configured using DIP switches or PC software, allowing flexible setup for your application needs.

The DAT5024AO provides both relay outputs and an analog retransmission output proportional to the input signal.
