AC current Transducer 40, 50, 60Amp to 10vdc DAT5023IAC C

• AC Current Transducer.
• DIP Switch Programmable.
• Input 0-40Amp ac.
• Input 0-50Amp ac.
• Input 0-60Amp ac.
• Output Current, Voltage .
• DIN Rail Mounted.

General Description

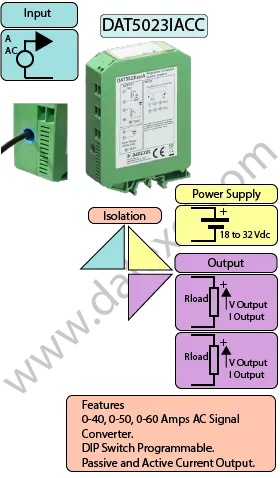

The AC current transducer DAT5023IAC C is designed to detect the TRMS value of the AC current signal from 0-40A, 0-50A and 0-60A applied on its input, providing a voltage or current output signal.
The user can program the input and output ranges by the DIP-switches located on the side of device.
The regulation of Zero and Span values is made by the ZERO and SPAN potentiometers located on the top of the device.
The DAT5023I AC provides on the output side an auxiliary supply source to connect both active and passive loads.
Other versions are a available.
DAT5023 I AC version A

0-5Amp.
0-10Amp.

DAT5023 I AC version B

0-20Amp.
0-25Amp.
0-30Amp.

The DAT5023IAC is accurate to 0.1% full scale and has less than 0.01%/°f thermal drift.
The 2000 Vac isolation between Input, power supply and output eliminates the effects of all ground loops and allows the use of the transducer in heavy environmental conditions found in industrial applications.
The DAT5023IAC provides a power supply on the output side so both active and passive loads can be connected.
The DAT5023IAC is in compliance with the standard 89/336/CEE on the Electromagnetic Compatibility.
The DAT5023IAC is housed in a plastic enclosure of 27.5 mm thickness suitable for DIN rail mounting in compliance with EN-50022 and EN-50035 standards.

INPUT	OUTPUT	POWER SUPPLY
AC Current 0-40 Amp, 0-50 Amp, 0-60 Amp.	Current 4-20mA, 0-20mA.	Power Supply Voltage 18-30Vdc
Other ranges available to order	Voltage 0-10V, 0-5V, 2-10V, 1-5V.	Reverse polarity protection 60Vdc
CURRENT CONSUMPTION	CONFIGURATION	ISOLATION
Between 50 and 80 mA	DIP Switches Programmable	Between Input/Comms/Power Supply 2000Vac.
EMC	HOUSING	TEMPERATURE
For Industrial environments	Material self-extinguishing	Operating Temperature -4°F +140°F -20°C +60°C
Immunity EN 61000-6-2	Dimensions W x H x T 3 1/2" x 4 1/2" x 1 1/8"	Storage Temperature -40°F +185°F-40°C +85°C
Emission EN 6100-6-4	90 x 112x x 27.5 mm	Humidity (non condensing) 0-90%
	Weight 6 oz 170 g

DAT5023IAC C Datasheet

Buy Online
Applications
Drawings
AC DC Current and Voltage transducer

Input:	Current 0-40 Amp, 0-50 Amp, 0-60 Amp.
Output:	Voltage 0-10V, 0-5V, 2-10V, 1-5V. Current 4-20mA, 0-20mA.
Power Supply:	18 to 32 Vdc. Reverse polarity protection 60 Vdc.
Current Consumption:	Current output 35 mA max. Voltage output 25 mA max.
Temperature rating:	Operative -4°F +158°F -20°C +70°C
	Temperature Storage Temperature -40°F +185°F -40°C +85°C.
Humidity:	(non condensing) 0-90%.
Housing:	Material self-extinguishing.
Dimensions:	3 1/2" x 4 1/2 " x 1/2", 90 x 112x x 12.5 mm.
Weight:	3 oz 90 g.
EMC.	For industrial environments.
	Immunity: EN 61000-6-2.
	Emission: EN 61000-6-4.
Configuration:	PC Configurable and DIP Switch Configurable

Input:
Current	In and out
Output:
Voltage	Positive N Negative M
Current Passive	Positive P Negative M
Current Active	Positive O Negative P
Power Supply	+Vdc Q GND1 R

AC Current Transducer.

DAT5023IAC C

Specifications

AC Current Input
