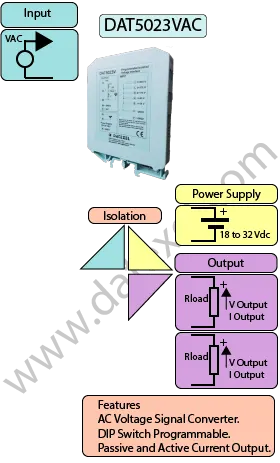

AC Voltage Transducer.

DAT5023VAC

DAT5023ADC AC Voltage Transducer.
Buy Online
AC Current Transducer DAT5023V.
• AC TRMS Voltage converter.
• DIP Switch Programmable.
• DIN Rail Mounted.
General Description

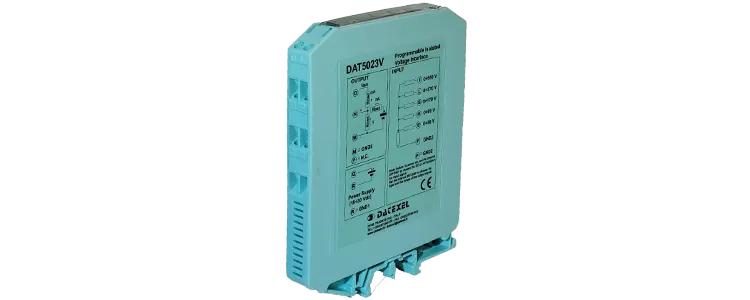

The DAT5023V AC Voltage Transducer is designed to measure the True Root Mean Square (TRMS) value of an AC voltage signal and convert it into a proportional DC voltage or current output. This makes it ideal for monitoring and interfacing AC voltage signals with PLCs, data acquisition systems, and industrial controllers.

The device supports multiple input ranges, selectable via DIP switches, including 0–36 VAC, 0–80 VAC, 0–170 VAC, 0–370 VAC, and 0–550 VAC. Custom calibration for other ranges is also available. Outputs can be configured as either voltage or current, allowing flexibility in system integration.

Configuration is simple: DIP switches on the side of the enclosure select input and output ranges, while ZERO and SPAN potentiometers located on the top panel allow fine adjustment. This enables precise calibration to match application requirements.

The DAT5023V delivers 0.1% full-scale accuracy with excellent stability, featuring a thermal drift of less than 0.01%/°F. Its robust design includes 1500 VAC isolation between input, output, and power supply, effectively eliminating ground loops and ensuring reliable operation in harsh industrial environments.

Housed in a 27.5 mm DIN rail enclosure compliant with EN-50022 and EN-50035 standards, the DAT5023V is compact yet rugged. It meets EMC Directive 89/336/CEE, making it a reliable and cost-effective solution for AC voltage measurement and conversion.

INPUT OUTPUT POWER SUPPLY
AC Voltage 0-36 Vac, 0-80 Vac, 0-170, 0-370 Vac, 0-550 Vac.  Current 4-20mA, 0-20mA. Power Supply Voltage 18-30Vdc
Other ranges available to order Voltage 0-10V, 0-5V, 2-10V, 1-5V. Reverse polarity protection 60Vdc
CURRENT CONSUMPTION CONFIGURATION ISOLATION
Between 50 and 80 mA DIP Switches Programmable Between Input/Comms/Power Supply 2000Vac.
EMC HOUSING TEMPERATURE
For Industrial environments Material self-extinguishing Operating Temperature -4°F +140°F -20°C +60°C
Immunity EN 61000-6-2 Dimensions W x H x T 3 1/2" x 4 1/2" x 1/2" Storage Temperature -40°F +185°F-40°C +85°C
Emission EN 6100-6-4 90 x 112x x 12.5 mm Humidity (non condensing) 0-90%
Weight 3 oz 90 g
DAT5023VAC Datasheet
Buy Online
Applications
Drawings
AC DC Current and Voltage converters

Specifications

Input: AC Voltage0-36 Vac, 0-80 Vac,0-170 Vac,0-370 Vac,0-550 Vac.
Output: Voltage 0-10V, 0-5V, 2-10V, 1-5V.
Current 4-20mA, 0-20mA.
Power Supply: 18 to 32 Vdc. Reverse polarity protection 60 Vdc.
Current Consumption: Current output 35 mA max. Voltage output 25 mA max.
Temperature rating: Operative -4°F +158°F -20°C +70°C
  Temperature Storage Temperature -40°F +185°F -40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material self-extinguishing.
Dimensions: 3 1/2" x 4 1/2 " x 1/2", 90 x 112x x 12.5 mm.
Weight: 3 oz 90 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.
Configuration: PC Configurable and DIP Switch Configurable
Drawings

AC Voltage Input

Input:
AC GND Terminal F
0-36 Vac Terminal E
0-80 Vac Terminal H
0-170 Vac Terminal G
0-370 Vac Terminal L
0-550 Vac Terminal I
Output
Voltage Positive N Negative M
Current Passive Positive N Negative M
Current Active Positive O Negative N
Power Supply +Vdc Q GND1 R

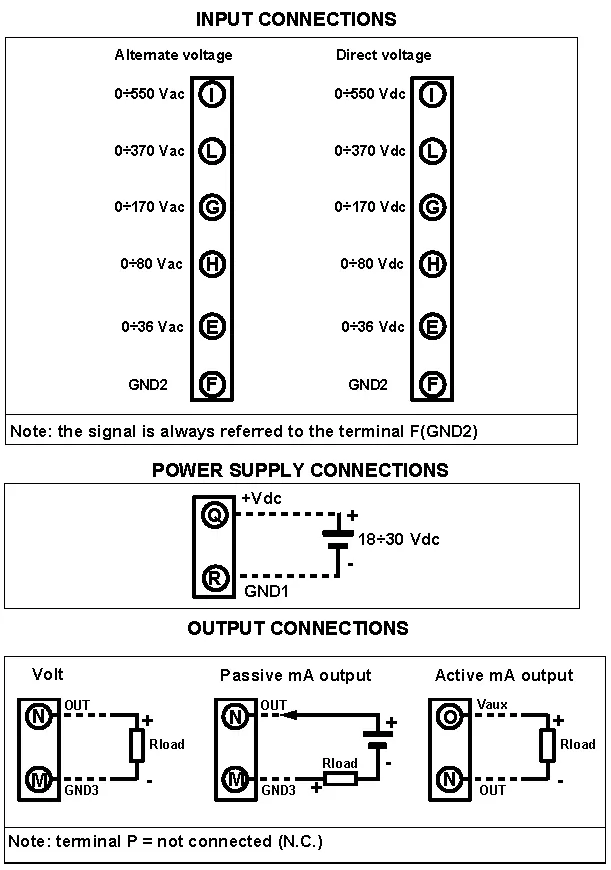

AC Voltage converter wiring Diagram.
Applications

DAT5023V AC Custom made products.

What is a DAT 5023V 230508?
The DAT5023V 230508 can accept an input of 0 to 100 mV ac corresponding to 1 Amp ac from 2 A to a 200 mV shunt.
What is a DAT 5023V 240708?
The DAT5023V 240708 can accept an input of 0 to 100 Vac, and provide an output of 0 to 1 mA dc.
What is a DAT 5023V 70612?
The DAT5023V 70612 can accept an input of 0 to 5 Vac, and provide an output of 4 to 20 mA dc.
What is a DAT 5023V 150121?
The DAT5023V 150121 can accept an input of 0 to 440 Vac, and provide an output of 4 to 20 mA dc.
What is a DAT 5023V 190307?
The DAT5023V 190307 can accept an input of 0 to 1 Vac, and be protected for spikes at 300 Vac.
What is a DAT 5023V 80609?
The DAT5023V 80609 can accept an input of 0 to 1 Vac, at 25 Khz with an ingress of 0 to 0,3 Vac at 5 Khz.
What is a DAT 5023V 181110?
The DAT5023V 181110 can accept an input of 0 to 10 Vac.
What is a DAT 5023V 70613?
The DAT5023V 70613 can accept an input of 0 to 200 mV AC from a Shunt.
What is a DAT 5023V 120417?
The DAT5023V 120417 can accept an input of 0 to 15 Vac.
What is a DAT 5023V 290118?
The DAT5023V 290118 can accept an input of 0 to 50 Vac.
What is a DAT 5023V 90118?
The DAT5023V 90118 can accept an input of 0 to 1.5 Vac.
What is a DAT 5023V 31018?
The DAT5023V 31018 can accept an input of 0 to 1 Vac.

Frequently Asked Questions about DAT5023V AC

What does the DAT5023V AC measure?
It measures the True RMS (TRMS) value of an AC voltage signal and converts it into a proportional DC voltage or current output.
What input ranges are available?
The DAT5023V AC supports selectable ranges of 0–36 VAC, 0–80 VAC, 0–170 VAC, 0–370 VAC, and 0–550 VAC. It can also be calibrated for custom ranges if required.
What types of outputs are available?
The device can provide either a voltage or current output, depending on system requirements.
How is the DAT5023V AC configured?
Input and output ranges are set using DIP switches located on the side of the device, while ZERO and SPAN potentiometers on the top allow fine calibration adjustments.
How accurate is the DAT5023V AC?
It offers 0.1% full-scale accuracy with a thermal drift of less than 0.01% per °F, ensuring stable long-term performance.
What level of isolation does the device provide?
The DAT5023V AC features 1500 VAC isolation between input, output, and power supply, eliminating ground loops and protecting against electrical noise.
What are the mechanical dimensions?
The device is housed in a compact 27.5 mm DIN rail enclosure compliant with EN-50022 and EN-50035 standards, making it suitable for industrial panels.
