CANopen CANbus Digital input and Digital Output.

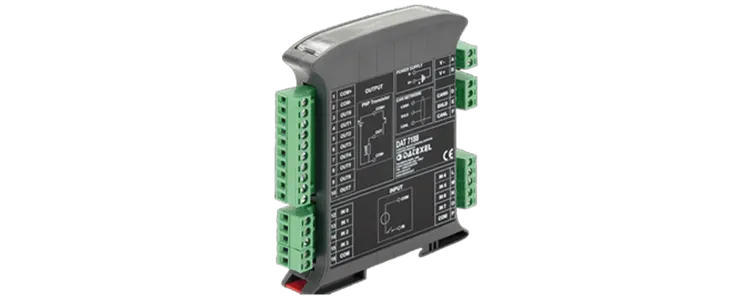

DAT7188

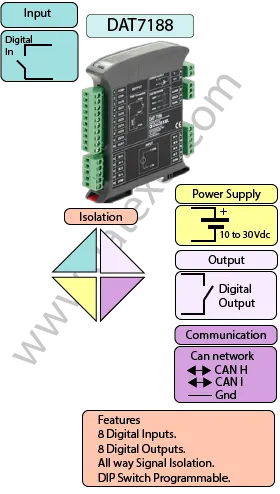

The DAT7188 accepts up to 8 digital inputs and provides 8 PNP digital outputs. Input and output states are converted into 16-bit digital data and transmitted over the CANopen (CAN bus) protocol, enabling reliable control and monitoring in distributed automation systems.
Fully compliant with CiA DS 301 and CiA DS 401, the DAT7188 can interface directly with CAN controllers and devices that follow these standards, ensuring seamless interoperability on CANopen networks.
The baud rate and node ID are configured via DIP switches on the side of the compact 22.5 mm DIN rail mountable enclosure. Plug-in terminals allow fast wiring and hot swapping without system downtime. For robust operation, the DAT7188 provides galvanic isolation up to 2000 Vac for 1 minute between the inputs, outputs, CANopen network, and power supply.
| INPUT | OUTPUT | POWER SUPPLY |
|---|---|---|
| 16 Digital Inputs | CANopen. | Power Supply Voltage 10-30Vdc |
| Reverse polarity protection 60Vdc | ||
| CURRENT CONSUMPTION | CONFIGURATION | ISOLATION |
| Between 60 and 115 mA | DIP Switch Programmable | Between Input/Comms/Power Supply 2000Vac. |
| EMC | HOUSING | TEMPERATURE |
| For Industrial environments | Material self-extinguishing | Operating Temperature -4°F +140°F -20°C +60°C |
| Immunity EN 61000-6-2 | Dimensions W x H x T 3 1/2" x 4 1/2" x 7/8" | Storage Temperature -40°F +185°F-40°C +85°C |
| Emission EN 6100-6-4 | 90 x 112 x 22.5 mm | Humidity (non condensing) 0-90% |
| Weight 3 oz 90 g |
| Input: | 16 Channels |
| Off State | Below 3 Vdc |
| On State | Between 10 and 30Vdc |
| Output | 8 Channels |
| PNP Transistor | Between 10.5 and 30Vdc |
| Power Supply: | 10 to 30 Vdc. Reverse polarity protection 60 Vdc. |
| Current Consumption: | Current output 35 mA max. Voltage output 25 mA max. |
| Temperature rating: | Operative -4°F +158°F -20°C +70°C |
| Temperature Storage Temperature -40°F +185°F -40°C +85°C. | |
| Humidity: | (non condensing) 0-90%. |
| Housing: | Material self-extinguishing. |
| Dimensions: | 4" x 4 1/2 " x 1", 100 x 120x x 22.5 mm. |
| Weight: | 3 oz 90 g. |
| EMC. | For industrial environments. |
| Immunity: EN 61000-6-2. | |
| Emission: EN 61000-6-4. | |
| Configuration: | PC Configurable and DIP Switch Configurable |

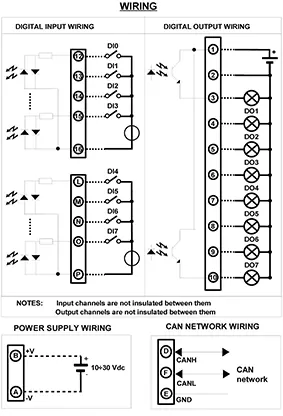

| Input | |
| D 0 | Terminal 16 and 12 |
| D 1 | Terminal 16 and 13 |
| D 2 | Terminal 16 and 14 |
| D 3 | Terminal 16 and 15 |
| D 4 | Terminal P and L |
| D 5 | Terminal P and M |
| D 6 | Terminal P and N |
| D 7 | Terminal P and O |
| Output | |
| D 0 | Terminal 1 and 2 |
| D 1 | Terminal 1 and 3 |
| D 2 | Terminal 1 and 4 |
| D 3 | Terminal 1 and 5 |
| D 4 | Terminal 1 and 6 |
| D 5 | Terminal 1 and 7 |
| D 6 | Terminal 1 and 8 |
| D 7 | Terminal 1 and 9 |
| CAN Network | Terminal D and F Ground E |
| Power Supply | Positive B Negative A |
