Current to Modbus converter.

DAT3015I

DAT3015-I Current to Modbus converter.
Buy Online

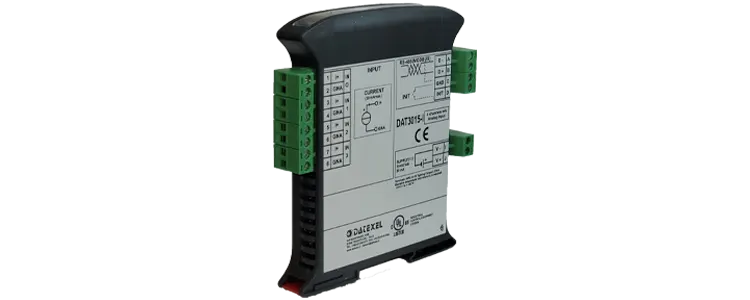

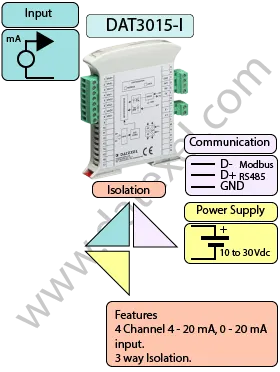

Current to Modbus converter DAT3015I.
• UL, CSA, CE.
• Modbus RTU Slave.
• 4 x 4-20mA input.
• RS485 Communication.
• Isolation.
General Description

The DAT3015-I Current to Modbus Converter is a 4-channel input module designed for acquiring current signals and transmitting them digitally over a Modbus network. It converts the analog current input into a precise 16-bit digital format for integration with PLCs, SCADA, and other Modbus master devices.

Each channel supports a full-scale input of –20 to +20 mA and can be programmed for 0–20 mA or 4–20 mA operation, making it suitable for a wide range of industrial transmitters and sensors.

Communication is available over RS-485 Modbus RTU, with an option for RS-232 Modbus ASCII format. The DAT3015-I is configured exclusively with the free DAT3000–10000 configuration software, which can be downloaded from our website, providing advanced setup and calibration functions.

INPUT OUTPUT POWER SUPPLY
4-20mA, 0-20mA. Modbus RS485 Power Supply Voltage 10-30Vdc
- 20 to 20 mA Reverse polarity protection 60Vdc
CURRENT CONSUMPTION CONFIGURATION ISOLATION
Between 30 and 115 mA PC Programmable Between Input/Comms/Power Supply 2000Vac.
EMC HOUSING TEMPERATURE
For Industrial environments Material self-extinguishing Operating Temperature 14°F +140°F -10°C +60°C
Immunity EN 61000-6-2 Dimensions W x H x T 4" x 4 3/4" x 3/4" Storage Temperature -40°F +185°F-40°C +85°C
Emission EN 6100-6-4 100 x 120x x 22.5 mm Humidity (non condensing) 0-90%
Weight 7 oz 200 g
DAT3015I RS485 Datasheet
Buy Online
Applications
Drawings
DAT3015-I User Guide
Modbus Analog Input Modules
Specifications
Application Note

Specifications
Input:
Current: 4 Channels -20 to 20 mA
Communication:
RS485: Modbus RTU Slave.
RS232: Modbus Slave.
Power Supply: 10 - 30 Vdc. Reverse polarity protection 60 Vdc.
Current Consumption: 30 mA.
Temperature rating: Operative Temperature -4°F +140°F -20°C +60°C
Storage Temperature -40°F +185°F -40°C +85°C.
Humidity: (not condensing) 0-90%.
Housing: Material self-extinguishing.
Dimensions: W x L x H 3 3/4X 3 1/2 X 1 7/8 inch, 90 x 74 x 48mm.
Weight: 7 oz 200 g.
EMC. For industrial environments.
Immunity: EN 61000-6-2.
Emission: EN 61000-6-4.
Isolation: Between Modbus Master, Slave/Power supply 1500Vac, 50Hz, 1 Minute.
Configuration: PC Configurable.

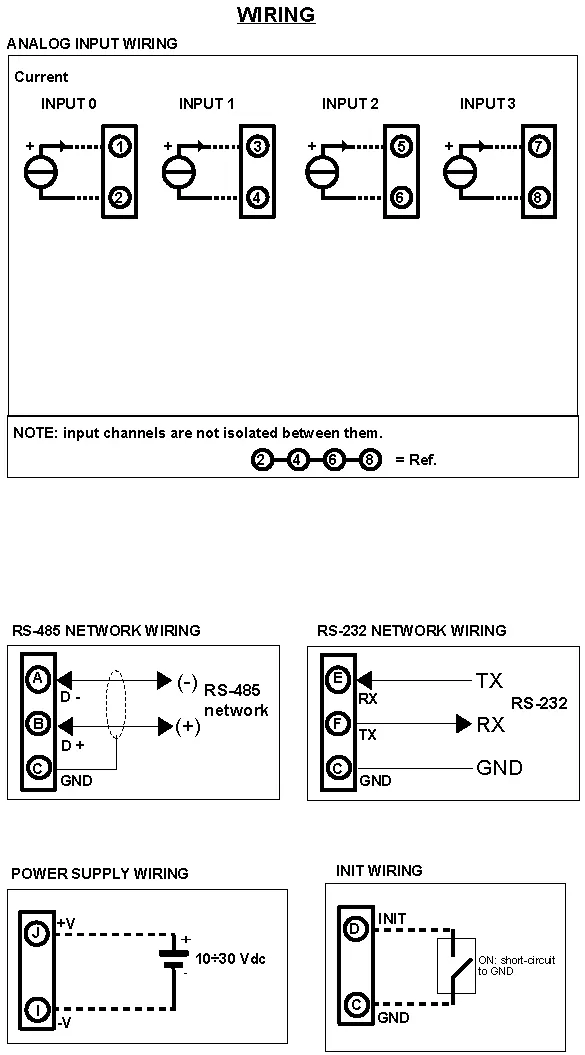

Drawings

Power Supply, Inputs and INIT

Current Input 0 Positive 1 Negative 2
Current Input 1 Positive 3 Negative 4
Current Input 2 Positive 5 Negative 6
Current Input 3 Positive 7 Negative 8
Power Supply (18-30Vdc). Positive J Negative I.
RS 485 Slave Positive (D+)B Negative (D-) A GND 6
RS-232D C GND
  E RX
  F TX
Init Pin D Init Gnd C
Current to Modbus converter DAT3015I.

Applications

Frequently Asked Questions about DAT3015-I

What is the DAT3015-I?
The DAT3015-I is a 4-channel Modbus converter for current signals, converting them into a 16-bit digital format over RS-485 (Modbus RTU) or RS-232 (Modbus ASCII).
What input ranges does it support?
Each channel accepts –20 to +20 mA and can be programmed for 0–20 mA or 4–20 mA inputs.
How many channels does it provide?
The module provides 4 independent current input channels.
How is the DAT3015-I configured?
The DAT3015-I is configured exclusively via the free DAT3000–10000 software, downloadable from our website, which allows advanced setup and calibration. It cannot be configured by DIP switches.
What is the resolution of the conversion?
The signals are digitized with 16-bit resolution, ensuring accuracy and stability.
How does it communicate?
The DAT3015-I communicates via RS-485 using the Modbus RTU protocol, and is also available in an RS-232 ASCII version.
What applications is it used for?
The DAT3015-I is typically used for integrating analog current signals from industrial transmitters and sensors into PLCs, SCADA systems, and Modbus networks.
