0-5 Amp DC Current converter.

DAT5023Idc A

DC Current Converter
Buy Online

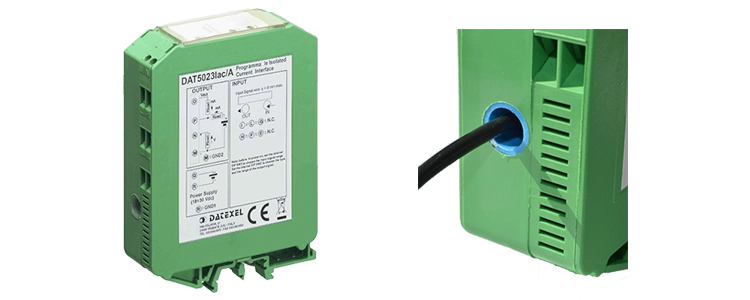

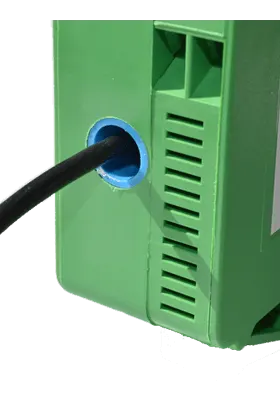

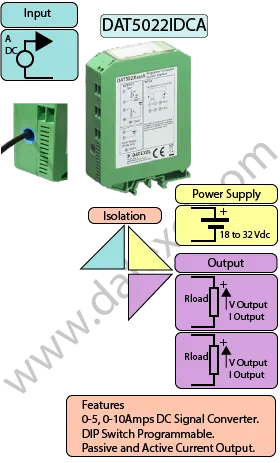

DC Current converter DAT5023Idc A. DC Current converter with cable.
• DC Current converter.
• DIP Switch Programmable.
• Input 0-5Amp .
• Input 0-10Amp .
• Output 4-20mA, 0-10V.
• DIN Rail Mounted.
General Description

The DC current converter DAT5023Idc A is designed to convert 0-5A or 0-10 A into a current or Voltage signal. The output signal is selectable from a 4-20mA, 0-20mA, 0-10V, 2-10V, 0-5 or 1-5V.
The user can program the input and output ranges by the DIP-switches located on the side of the device.
The regulation of Zero and Span values is made by the ZERO and SPAN potentiometers located on the top of the device.
The DAT5023Idc provides on the output side an auxiliary supply source to connect both active and passive loads.
The device is available in other input ranges.
DAT5023 I dc version B 0-20Amp, 0-25Amp, 0-30Amp.
DAT5023 I dc version C 0-40Amp, 0-50Amp, 0-60Amp.
The DAT5023Idc is accurate to 0.1% full scale and has less than 0.01%/°f thermal drift.
The 2000 Vac isolation between Input, power supply and output eliminates the effects of all ground loops and allows the use of the converter in heavy environmental conditions found in industrial applications.
The DAT5023Idc provides a power supply on the output side so both active and passive loads can be connected.
The DAT5023Idc is in compliance with the standard 89/336/CEE on the Electromagnetic Compatibility.
The DAT5023Idc is housed in a plastic enclosure of 27.5 mm thickness suitable for DIN rail mounting in compliance with EN-50022 and EN-50035 standards.

INPUT OUTPUT POWER SUPPLY
DC Current 0-5 Amp, 0-10 Amp. Current 4-20mA, 0-20mA. Power Supply Voltage 18-30Vdc
Other ranges available to order Voltage 0-10V, 0-5V, 2-10V, 1-5V. Reverse polarity protection 60Vdc
CURRENT CONSUMPTION CONFIGURATION ISOLATION
Between 50 and 80 mA DIP Switches Programmable Between Input/Comms/Power Supply 2000Vac.
EMC HOUSING TEMPERATURE
For Industrial environments Material self-extinguishing Operating Temperature -4°F +140°F -20°C +60°C
Immunity EN 61000-6-2 Dimensions W x H x T 3 1/2" x 4 1/2" x 1 1/8" Storage Temperature -40°F +185°F-40°C +85°C
Emission EN 6100-6-4 90 x 112x x 27.5 mm Humidity (non condensing) 0-90%
Weight 6 oz 170 g
DAT5023Idc A Datasheet
Buy Online
Applications
Drawings
AC DC Current and Voltage converters

Specifications

Input: Current 0-5 Amp, 0-10Amp.
Output: Voltage 0-10V, 0-5V, 2-10V, 1-5V.
Current 4-20mA, 0-20mA.
Power Supply: 18 to 32 Vdc. Reverse polarity protection 60 Vdc.
Current Consumption: Current output 35 mA max. Voltage output 25 mA max.
Temperature rating: Operative -4°F +158°F -20°C +70°C
  Temperature Storage Temperature -40°F +185°F -40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material self-extinguishing.
Dimensions: 3 1/2" x 4 1/2 " x 1/2", 90 x 112x x 12.5 mm.
Weight: 3 oz 90 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.
Configuration: PC Configurable and DIP Switch Configurable
Drawings

DC Current Input

Input:
Current In and out
Output:
Voltage Positive N Negative M
Current Passive Positive P Negative M
Current Active Positive O Negative P
Power Supply +Vdc Q GND1 R

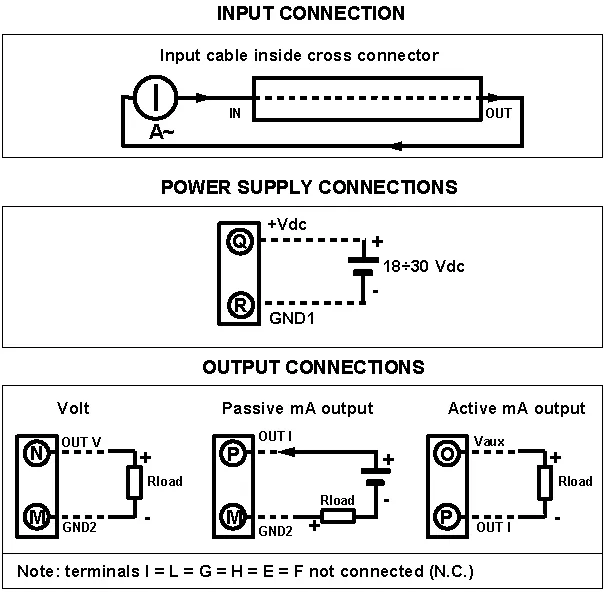

DC Current converter wiring Diagram.
Applications

Frequently Asked Questions about DAT5023IDC

What does the DAT5023IDC do?
The DAT5023IDC converts DC current signals into a proportional DC voltage or current output. It is available in several versions with different input ranges.
What input ranges are supported?
Version A supports 0–5 A and 0–10 A inputs. Version B supports 0–20 A, 0–25 A, and 0–30 A. Version C supports 0–40 A, 0–50 A, and 0–60 A.
What output signals are available?
The output can be configured as 4–20 mA, 0–20 mA, 0–10 V, 2–10 V, 0–5 V, or 1–5 V depending on the application.
How is the device configured?
Input and output ranges are selected via DIP switches located on the side of the device. ZERO and SPAN potentiometers on the top allow fine calibration adjustments.
Can the DAT5023IDC drive passive loads?
Yes. It provides an auxiliary supply on the output side, allowing connection of both active and passive loads.
How accurate is the DAT5023IDC?
The device offers 0.1% full-scale accuracy with a thermal drift of less than 0.01% per °F, ensuring stable and reliable performance.
Does the device provide galvanic isolation?
Yes. The DAT5023IDC provides 2000 VAC isolation between input, output, and power supply, eliminating ground loops and electrical interference.
What are the mechanical dimensions?
The device is housed in a 27.5 mm DIN rail enclosure compliant with EN-50022 and EN-50035 standards.
