DC Voltage Transducer

DAT5023VDC

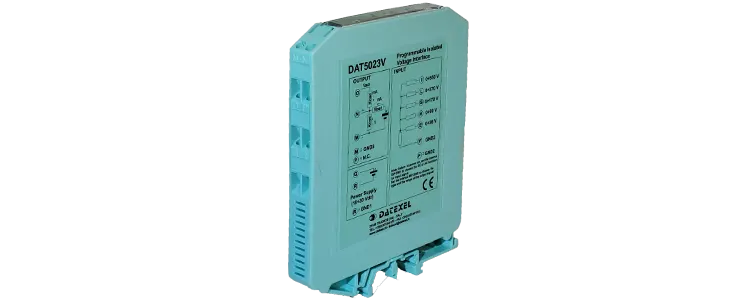

DAT5023VDC  DC Voltage Transducer.
Buy Online
DC Current Transducer DAT5023V.
• DC TRMS Voltage converter.
• DIP Switch Programmable.
• DIN Rail Mounted.
General Description

The DAT5023V DC Voltage Transmitter is designed to measure DC voltage signals and convert them into a proportional DC current or voltage output. It is widely used in industrial automation to interface DC measurement points with PLCs, SCADA systems, and monitoring equipment.

Input and output ranges are programmable via DIP switches located on the side of the device. Fine calibration is easily performed using the ZERO and SPAN potentiometers located on the top, allowing precise adjustment to meet application requirements.

The DAT5023V offers 0.1% full-scale accuracy and excellent stability, with a thermal drift of less than 0.01% per °F. It provides 1500 VDC galvanic isolation between input, output, and power supply, eliminating ground loop effects and ensuring reliable operation in harsh industrial environments.

Unlike many basic converters, the DAT5023V includes an integrated output-side power supply, enabling it to drive both active and passive loads. This enhances flexibility in applications where multiple output devices may be connected.

The device complies with EMC Directive 89/336/CEE and is housed in a 27.5 mm DIN rail enclosure in accordance with EN-50022 and EN-50035 standards. Compact, rugged, and configurable, the DAT5023V is a reliable solution for DC voltage signal conversion and isolation.

INPUT OUTPUT POWER SUPPLY
DC Voltage 0-36 Vdc, 0-80 Vdc, 0-170 Vdc, 0-370 Vdc, 0-550 Vdc.  Current 4-20mA, 0-20mA. Power Supply Voltage 18-30Vdc
Other ranges available to order Voltage 0-10V, 0-5V, 2-10V, 1-5V. Reverse polarity protection 60Vdc
CURRENT CONSUMPTION CONFIGURATION ISOLATION
Between 50 and 80 mA DIP Switches Programmable Between Input/Comms/Power Supply 2000Vac.
EMC HOUSING TEMPERATURE
For Industrial environments Material self-extinguishing Operating Temperature -4°F +140°F -20°C +60°C
Immunity EN 61000-6-2 Dimensions W x H x T 3 1/2" x 4 1/2" x 1/2" Storage Temperature -40°F +185°F-40°C +85°C
Emission EN 6100-6-4 90 x 112x x 12.5 mm Humidity (non condensing) 0-90%
Weight 3 oz 90 g

Specifications

Input: DC Voltage 0-36 Vdc, 0-80 Vdc,0-170 Vdc,0-370 Vdc,0-550 Vdc.
Output: Voltage 0-10V, 0-5V, 2-10V, 1-5V.
Current 4-20mA, 0-20mA.
Power Supply: 18 to 32 Vdc. Reverse polarity protection 60 Vdc.
Current Consumption: Current output 35 mA max. Voltage output 25 mA max.
Temperature rating: Operative -4°F +158°F -20°C +70°C
  Temperature Storage Temperature -40°F +185°F -40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material self-extinguishing.
Dimensions: 3 1/2" x 4 1/2 " x 1/2", 90 x 112x x 12.5 mm.
Weight: 3 oz 90 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.
Configuration: PC Configurable and DIP Switch Configurable
Drawings

DC Voltage Input

Input:
AC GND Terminal F
0-36 Vdc Terminal E
0-80 Vdc Terminal H
0-170 Vdc Terminal G
0-370 Vdc Terminal L
0-550 Vdc Terminal I
Output
Voltage Positive N Negative M
Current Passive Positive N Negative M
Current Active Positive O Negative N
Power Supply +Vdc Q GND1 R

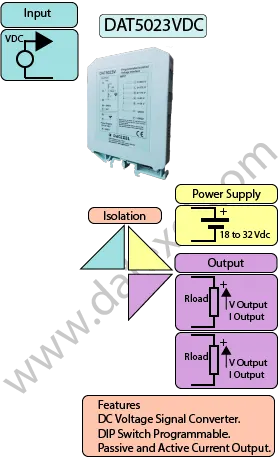

DC Voltage converter wiring Diagram.
Applications

DAT5023V DC Custom made products.

What is a DAT 5023V 151220?
The DAT5023V 151220 can accept an input of 0 to 50 Vdc, and provide a 0 to 10 V dc output.
What is a DAT 5023V 120417?
The DAT5023V 120417 can accept an input of 0 to 15 Vdc.
What is a DAT 5023V 290118?
The DAT5023V 290118 can accept an input of 0 to 50 Vdc.
What is a DAT 5023V 90118?
The DAT5023V 90118 can accept an input of 0 to 1.5 Vdc.
What is a DAT 5023V 31018?
The DAT5023V 31018 can accept an input of 0 to 1 Vdc.

Frequently Asked Questions about DAT5023V DC

What does the DAT5023V DC measure?
It measures DC voltage signals and converts them into a proportional DC voltage or current output.
How is the DAT5023V DC configured?
Input and output ranges are set using DIP switches on the side of the device, while ZERO and SPAN potentiometers on the top allow for fine calibration.
What is the accuracy of the device?
The DAT5023V DC offers 0.1% full-scale accuracy with a thermal drift of less than 0.01% per °F, ensuring stable performance.
Does the DAT5023V DC provide isolation?
Yes, it provides 1500 VDC galvanic isolation between input, output, and power supply, eliminating ground loop problems and protecting connected equipment.
Can the DAT5023V DC drive passive loads?
Yes, the unit includes an integrated power supply on the output side, enabling it to drive both active and passive loads.
What are the enclosure dimensions?
The device is housed in a slim 27.5 mm DIN rail enclosure compliant with EN-50022 and EN-50035 standards, saving space in control panels.
Back to General Description
