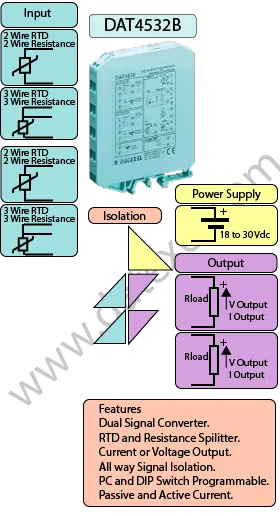

Dual Channel RTD converter and Dual Channel Resistance converter
DAT4532B
The DAT4532B is an 8 Channel fully isolated 0-10 V dc to Modbus TCP converter using Ethernet Base 10/100T Communication. The DAT4532B can accept other voltage ranges such as -10 to +10 Vdc, 2-10 Vdc. The inputs, Ethernet and power supply are isolated from each other up to 1500VAC for 1 minute. The DAT4532B accepts a wide tolerance on it's power supply from 10 to 30 Vdc and it is mounted on DIN Rail.
| INPUT | OUTPUT | POWER SUPPLY |
|---|---|---|
| 2 x RTD | 2 x Current 4-20 mA | Power Supply Voltage 18-32Vdc |
| 2 x Resistance | 2 x 0-10 V | Reverse polarity protection 60Vdc |
| CURRENT CONSUMPTION | CONFIGURATION | ISOLATION |
| Between 10 and 40 mA | DIP Switch Programmable | Between 3 way 1500Vac. |
| PC Programmable | ||
| EMC | HOUSING | TEMPERATURE |
| For Industrial environments | Material self-extinguishing | Operating Temperature -4°F +158°F -20°C +70°C |
| Immunity EN 61000-6-2 | Dimensions W x H x T 3 1/2" x 4 1/2" x 1/2 " | Storage Temperature -40°F +185°F-40°C +85°C |
| Emission EN 6100-6-4 | 90 x 112x x 12.5 mm | Humidity (non condensing) 0-90% |
| Weight 3 oz 90 g |
| Input:Channel A | RTD’s Pt100, Pt1000, Ni100, Ni1000. Resistance 0-2000 Ohms. See Data sheet for range. |
| Input:Channel B | RTD’s Pt100, Pt1000, Ni100, Ni1000. Resistance 0-2000 Ohms. See Data sheet for range. |
| Output: | 2 X 4-20mA, 0-20mA, 0-10V. |
| Power Supply: | 18 to 30 Vdc. Reverse polarity protection 60 Vdc. |
| Current Consumption: | Current output 35 mA max. Voltage output 25 mA max. |
| Temperature rating: | Operative -4°F +158°F -20°C +70°C |
| Temperature Storage Temperature -40°F +185°F -40°C +85°C. | |
| Humidity: | (non condensing) 0-90%. |
| Housing: | Material self-extinguishing. |
| Dimensions: | 3 1/2" x 4 1/2 " x 1/2", 90 x 112x x 12.5 mm. |
| Weight: | 3 oz 90 g. |
| EMC. | For industrial environments. |
| Immunity: EN 61000-6-2. | |
| Emission: EN 61000-6-4. | |
| Configuration: | PC Configurable and DIP Switch Configurable |

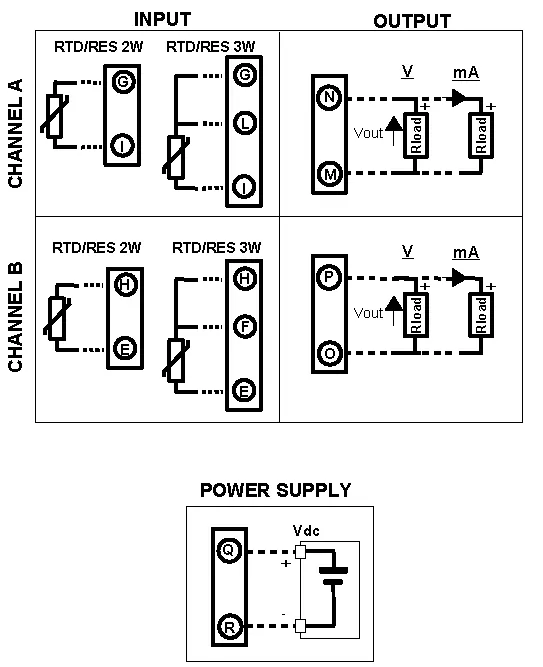

| Input Channel A | |
| RTD 2 Wire | G and I. |
| RTD 3 Wire | I and L with compensation wire G |
| Input Channel B | |
| RTD 2 Wire | H and E. |
| RTD 3 Wire | E and F with compensation wire H |
| Input Channel A | |
| Resistance 2 Wire | G and I. |
| Resistance 3 Wire | I and L with compensation wire G |
| Input Channel B | |
| Resistance 2 Wire | H and E. |
| Resistance 3 Wire | E and F with compensation wire H |
| Output A | |
| Current | Positive N Negative M. |
| Voltage | Positive N Negative M |
| Output B | |
| Current | Positive P Negative O. |
| Voltage | Positive P Negative O |
| Power supply | Positive Q Negative R. |
