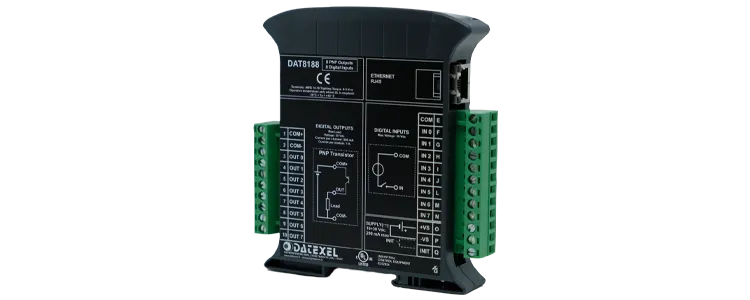

MODBUS TCP Ethernet with 8 Digital inputs and 8 PNP Digital Outputs. DAT8188.
• Modbus TCP Ethernet.
• 8 Digital Inputs.
• 4 Counters.
• 8 Digital PNP Outputs.
• Isolation.
General Description

The DAT8188 is a versatile Modbus TCP converter with 8 digital inputs and 8 digital PNP outputs, designed for industrial automation and control systems. It uses Ethernet Base 10/100T communication to interface seamlessly with Modbus TCP networks.

Each digital input recognizes an ON state at voltages above 10 V and an OFF state below 3 V, providing reliable detection of connected sensors, switches, or other devices. The 8 PNP transistor outputs allow for direct control of actuators, relays, or signal devices in your system.

All inputs, outputs, Ethernet communication, and the power supply are fully isolated from each other up to 1500 VAC for 1 minute. This level of isolation protects the device and connected equipment from electrical noise, voltage spikes, and ground loops.

The DAT8188 accepts a wide range of power supply voltages from 10 to 30 Vdc, making it flexible for integration into a variety of industrial environments. Compact and durable, it is designed for DIN Rail mounting, ensuring secure and organized installation in control panels.

INPUT OUTPUT POWER SUPPLY
8 Digital Inputs 8 PNP Transistors Power Supply Voltage 10-30Vdc
Modbus TCP Ethernet 10/100T Modbus TCP Ethernet 10/100T Reverse polarity protection 60Vdc
CURRENT CONSUMPTION CONFIGURATION ISOLATION
Between 60 and 115 mA PC Programmable Between Input/Comms/Power Supply 1500Vac.
EMC HOUSING TEMPERATURE
For Industrial environments Material self-extinguishing Operating Temperature 14°F +140°F -10°C +60°C
Immunity EN 61000-6-2 Dimensions W x H x T 4" x 4 3/4" x 3/4" Storage Temperature -40°F +185°F-40°C +85°C
Emission EN 6100-6-4 100 x 120x x 22.5 mm Humidity (non condensing) 0-90%
Weight 6 oz 160 g

Specifications
Input:
Digital On State 10- 30 Vdc and off State below 3 Vdc.
Output
Relay 8 PNP Digital Transistor.
Communication:
Ethernet 10/100T: Modbus TCP.
Power Supply: 10 - 30 Vdc. Reverse polarity protection 60 Vdc.
Current Consumption: 60 mA Standby 115 mA Max.
Temperature rating: Operative Temperature -4°F +140°F - 20°C +60°C Storage Temperature - 40°F +185°F - 40°C +85°C.
Humidity: (not condensing) 0-90%.
Housing: Material self-extinguishing.
Dimensions: W x H x T 4 3/4 x 4 x 7/8 inch, 120 x 100 x 22,5mm.
Weight: 6 oz 160 g.
EMC. For industrial environments.
Immunity: EN 61000-6-2.
Emission: EN 61000-6-4.
Isolation: Input, Each Channel, Power Supply, 1500Vac, 50Hz, 1 Minute.
Configuration: PC Configurable.
Drawings

DAT8148 Power Supply and INIT Wiring Diagram

Power Supply (18-30Vdc). Positive O Negative P.
Init Pin Q Init Gnd P
DAT8000 power supply and Init

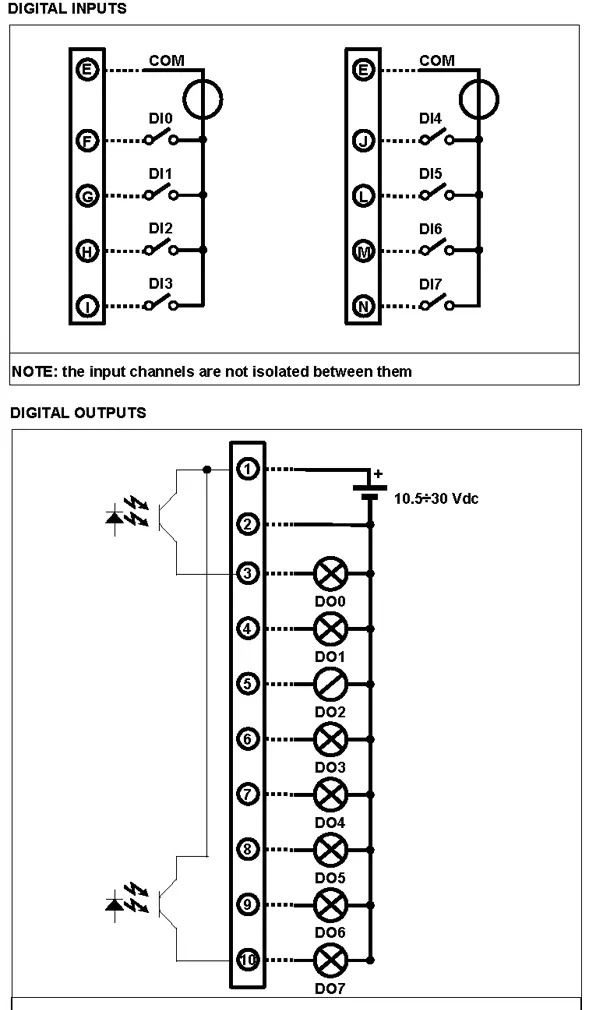

DAT8188 Digital Inputs Wiring Diagram

Digital Inputs
Digital Input 0 Common E Input DI0 F
Digital Input 1 Common E Input DI1 G
Digital Input 2 Common E Input DI2 H
Digital Input 3 Common E Input DI3 I
Digital Input 4 Common E Input DI4 J
Digital Input 5 Common E Input DI5 L
Digital Input 6 Common E Input DI6 M
Digital Input 7 Common E Input DI7N
Digital Outputs
Digital Output 0 Common 1 Output DO0 3
Digital Output 1 Common 1 Output DO1 4
Digital Output 2 Common 1 Output DO2 5
Digital Output 3 Common 1 Output DO3 6
Digital Output 4 Common 1 Output DO4 7
Digital Output 5 Common 1 Output DO5 8
Digital Output 6 Common 1 Output DO6 9
Digital Output 7 Common 1 Output DO7 10
