Isolated Head Mounted Temperature Transmitter.

DAT1061

DAT1061 Isolated Head Mounted Temperature Transmitter
Buy Online

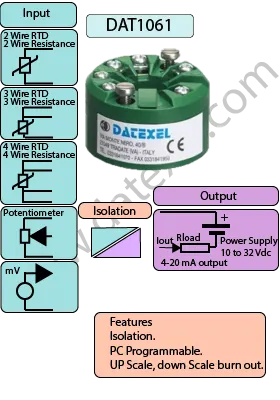

Isolated Head Mounted RTD Temperature Transmitter DAT1061.
• Isolated.
• Input RTD's Pt100, Pt1000, Ni100 and Ni1000.
• Potentiometer.
• Resistance.
• PC Programmable
• Up Scale, Down scale Burn Out.
• Head Mounted
General Description

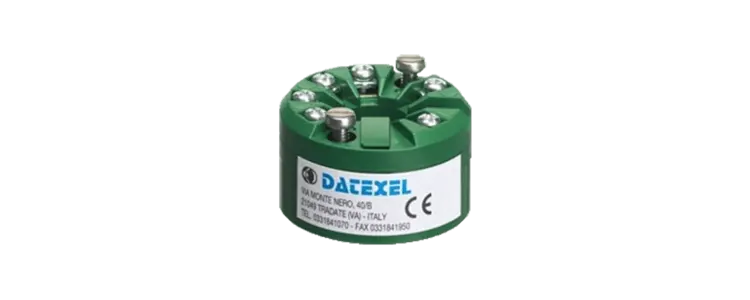

The DAT1061 Isolated Head-Mounted Temperature Transmitter is a compact "hockey puck"-style device designed for direct installation in sensor heads. It provides galvanic isolation between input and output circuits up to 1500 Vac, ensuring safe and reliable signal transmission in industrial environments.

The DAT1061 supports a wide range of sensor inputs, including RTDs (Pt100, Pt1000, Ni100, Ni1000), mV signals up to 700 mV (minimum span 2 mV), resistance inputs up to 2000 Ohms (minimum span 10 Ohms), and potentiometers up to 50 kΩ. Configuration of sensor type, range, zero, and span is done via PC using the Datapro software.

The transmitter includes input linearization and output damping features, with damping time adjustable up to 30 seconds. The analog output is selectable as either 4-20 mA or reverse 20-4 mA, offering flexibility for control systems.

Both RTD and resistance inputs can be wired in 3-wire or 4-wire configurations, allowing for compensation of lead wire resistance. The DAT1061 is configured using Datapro software and the optional CVPROG USB programming interface, available from DATEXEL.

INPUT OUTPUT POWER SUPPLY
RTD Pt100, Pt1000, Ni100, Ni1000. Resistance 0-200 0-500 0-2kΩ 4-20 mA Power Supply Voltage 10-30Vdc
mV -100 to 700 mV Potentiometer up to 2 k Ω Reverse polarity protection 60Vdc
CURRENT CONSUMPTION CONFIGURATION ISOLATION
Between 20 mA PC Programmable Between Input and Output 1500 Vac, 50 Hz, 1 min.
EMC HOUSING TEMPERATURE
For Industrial environments Material self-extinguishing Operating Temperature -40°F +185°F -40°C +85°C
Immunity EN 61000-6-2 Dimensions W x H 4 3/4" x 1" Storage Temperature -40°F +185°F -40°C +85°C
Emission EN 6100-6-4 43 x 24 mm Humidity (non condensing) 0-90%
Weight 1 1/2 oz 50 g

Specifications
Input: RTD Pt100, Pt1000, Ni100, Ni1000, mV, Potentiometer,
  Resistance. See Data sheet for range.
Output: 4-20mA.
Power Supply: 7 to 32 Vdc
Temperature rating: Operative -4°F +158°F -20°C +70°C
  Temperature Storage Temperature -40°F +185°F -40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material self-extinguishing.
Dimensions: Diameter 1 3/4 " Height 15/16 " 42 mm X 24mm
Weight: 3 oz 90 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.
Configuration: PC Configurable
Drawings

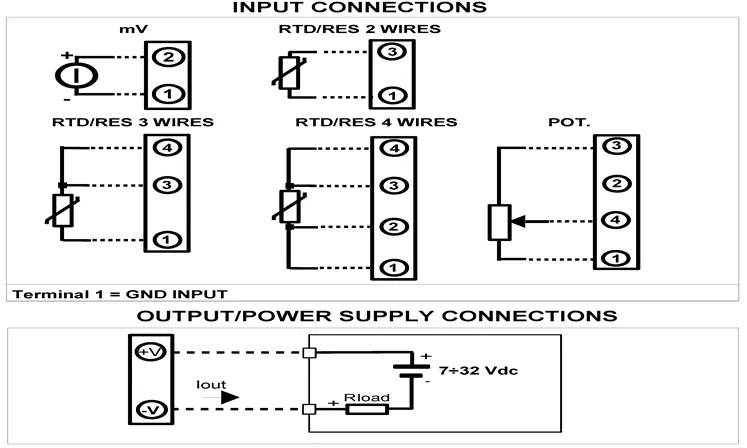

DAT1061 Wiring Diagram

Input
mV Positive 2 Negative 1
RTD and Resistance 2 wires Terminals 1 and 3
RTD and Resistance 3 wires Terminal 1 and 3 Common 4
RTD and Resistance 4 wires Terminal 1 Comp 2 and Terminal 3 Comp 4
Potentiometer Terminal 1 and 3 Wiper 4
Output and Power supply Positive +V Negative -V
Isolated Head Mounted Temperature Transmitter DAT1061 wiring diagram.
Applications

Custom products

What is a DAT 1061 261015?
The DAT 1061 261015 has a modified signal input circuit so it can measure an input of 0-1 Vdc.

Frequently Asked Questions - DAT1061

What type of sensors does the DAT1061 support?
The DAT1061 supports RTDs (Pt100, Pt1000, Ni100, Ni1000), millivolt signals up to 700 mV, resistance inputs up to 2000 Ohms, and potentiometers up to 50 kΩ.
Is the DAT1061 electrically isolated?
Yes, the DAT1061 provides galvanic isolation between the input and output circuits rated at 1500 Vac.
Can I use 3-wire or 4-wire RTD connections?
Yes, the DAT1061 supports both 3-wire and 4-wire configurations for RTD and resistance sensors, allowing for lead wire compensation.
How is the DAT1061 configured?
The transmitter is configured using the Datapro software. The optional CVPROG USB interface is available from Datexel for PC-based programming.
What output signal types are supported?
The output can be configured for either 4-20 mA or reverse 20-4 mA operation.
Can the output signal be damped?
Yes, the DAT1061 includes a damping feature adjustable up to 30 seconds to reduce noise or fast fluctuations.
