Low-Cost Signal Splitter.

DAT5022

DAT5022 Low-Cost Signal Splitter.
Buy Online

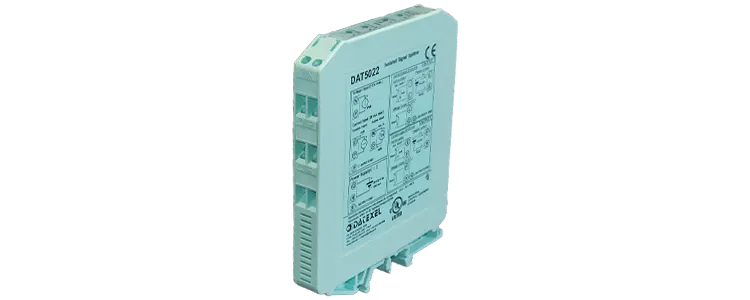

Low-Cost Signal Splitter DAT5022.
• Isolated Low-Cost Signal Splitter.
• UL, CSA, CE.
• Input mA, Volts.
• Output 0 to 10V and 4-20mA.
• DIP Switch Configurable
General Description

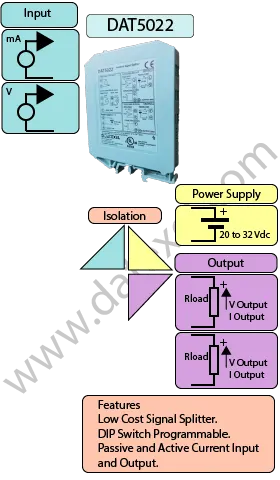

The DAT5022 Low-Cost Signal Splitter is a compact and versatile 4-way isolated signal conditioner, providing galvanic isolation between the input, power supply, and both outputs. This isolation eliminates ground loops, enhances noise immunity, and ensures reliable performance in demanding industrial environments.

The device accepts analog inputs including 4–20 mA, 0–20 mA, 0–10 V, 2–10 V, 0–5 V, and 1–5 V, and provides two independent outputs that can be configured as current or voltage signals. Because it functions as both a splitter and a converter, the outputs can be different from the input type (e.g., current input converted to voltage output). This makes the DAT5022 highly flexible for signal distribution to multiple instruments.

Span and zero adjustments allow fine-tuning or the introduction of offsets to match system requirements. Configuration of input and output ranges is done easily via DIP switches, and the device can be supplied pre-configured or set up by the customer on-site.

The DAT5022 is powered by a 20–32 VDC supply with a maximum consumption of just 100 mA. It offers 0.1% full-scale accuracy and excellent stability, with a thermal drift of less than 0.01% per °F, ensuring long-term reliability.

Housed in a slim 12.5 mm DIN rail enclosure, compliant with EN-50022 and EN-50035 standards, the DAT5022 is well suited for space-constrained panels. It complies with EMC Directive 89/336/CEE, making it a cost-effective solution for splitting and conditioning analog signals in industrial automation.

INPUT OUTPUT POWER SUPPLY
Current 4-20mA, 0-20mA. Current 4-20mA, 0-20mA. Power Supply Voltage 20-32Vdc
Voltage 0-10V, 0-5V, 2-10V, 1-5V. Voltage 0-10V, 0-5V, 2-10V, 1-5V. Reverse polarity protection 60Vdc
CURRENT CONSUMPTION CONFIGURATION ISOLATION
35 mA DIP Switch Programmable Between Input/Output/Power Supply 2000Vac.
EMC HOUSING TEMPERATURE
For Industrial environments Material self-extinguishing Operating Temperature 14°F +140°F -10°C +60°C
Immunity EN 61000-6-2 Dimensions W x H x T 3 1/2" x 4 1/2" x 1/2 " Storage Temperature -40°F +185°F-40°C +85°C
Emission EN 6100-6-4 90 x 112x 12.5 mm Humidity (non condensing) 0-90%
Weight 3  oz 90 g

Specifications

Input: Voltage 0-10V, 0-5V, 2-10V, 1-5V.
Current 4-20mA, 0-20mA. .
Output: 2 X Voltage 0-10V, 0-5V, 2-10V, 1-5V.
2 X Current 4-20mA, 0-20mA.
Power Supply: 18 to 32 Vdc. Reverse polarity protection 60 Vdc.
Current Consumption: Current output 35 mA max. Voltage output 25 mA max.
Temperature rating: Operative -4°F +158°F -20°C +70°C
  Temperature Storage Temperature -40°F +185°F -40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material self-extinguishing.
Dimensions: 3 1/2" x 4 1/2 " x 1/2", 90 x 112x x 12.5 mm.
Weight: 3 oz 90 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.
Configuration: PC Configurable and DIP Switch Configurable
Drawings

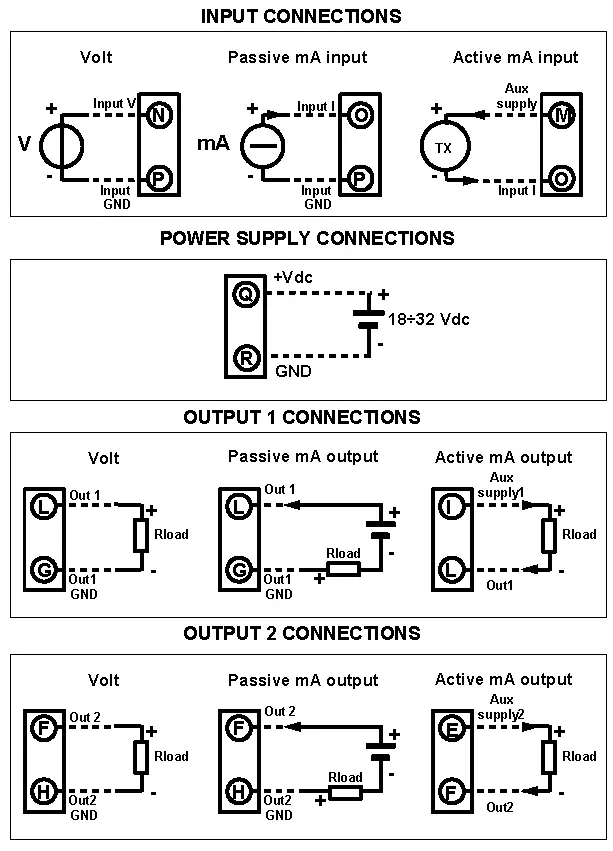

Power Supply, Signal Input and Output Connections

Input
Volts Terminals + N and - P
mA
Passive Positive O Negative P
Active Positive M Negative O
Power supply Positive +V Q Negative -V R
Output 1
Current Passive Positive L Ground G
Current Active Positive I Ground L
Voltage Positive L Ground G
Output 2
Current Passive Positive F Ground H
Current Active Positive E Ground F
Voltage Positive F Ground H
DAT5022 wiring Diagram.
Applications

Frequently Asked Questions about DAT5022

What is the DAT5022?
The DAT5022 is a low-cost signal splitter and converter that provides 4-way isolation between the input, power supply, and two outputs.
What input signals does the DAT5022 support?
It supports current inputs of 4–20 mA and 0–20 mA, as well as voltage inputs of 0–10 V, 2–10 V, 0–5 V, and 1–5 V.
Can the outputs be different from the input?
Yes, the DAT5022 can function as a converter. For example, it can accept a current input and provide voltage outputs, or vice versa.
How many outputs does the DAT5022 provide?
It provides two fully isolated analog outputs, which can be independently configured as current or voltage signals.
Can the DAT5022 provide four isolated outputs?
Yes. By looping the input signal into both channels, the DAT5022 can be used to generate four isolated outputs.
How is the DAT5022 configured?
Input and output ranges are selected using DIP switches. The device can be shipped pre-configured or adjusted by the user on-site. Span and zero adjustments are also available for fine-tuning.
What are the accuracy and stability specifications?
The DAT5022 offers 0.1% full-scale accuracy with thermal drift less than 0.01% per °F, ensuring stable and precise operation.
What power supply does the DAT5022 require?
The device operates from a 20–32 VDC power supply and consumes up to 100 mA.
How compact is the DAT5022?
The DAT5022 is housed in a slim 12.5 mm DIN rail enclosure, ideal for high-density control panels.

DAT5022 Custom made products.

What is a DAT 5022 310815?
The DAT5022 310815 can accept an input of -1 to 17 Vdc and convert it to two 4 to 20 mA outputs.
