OEM TEMPERATURE TRANSMITTER
DAT1010-OEM

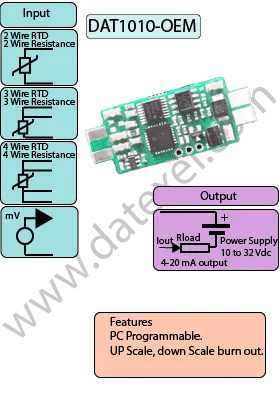

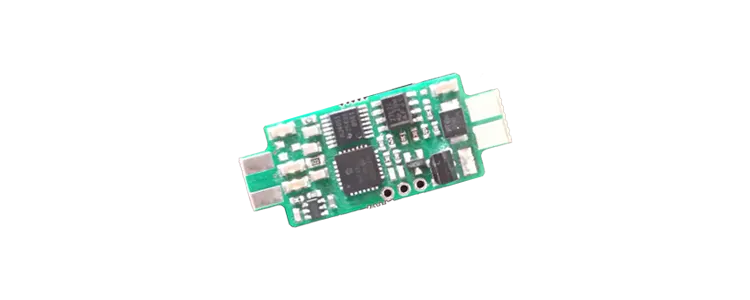

The DAT1010-OEM is an OEM temperature transmitter in PCB format, designed for integration into compact enclosures and custom assemblies. It offers the same performance as a standard head-mounted transmitter but in a board-only format ideal for OEM applications.
The DAT1010-OEM accepts a variety of sensor inputs, including RTDs (Pt100, Pt1000, Ni100, Ni1000), millivolt signals (–100 mV to +700 mV, min span 2 mV), resistance inputs (0–200 Ω, 0–500 Ω, 0–2000 Ω), and potentiometers (0–200 Ω, 200–500 Ω, 500–2000 Ω). All input signals are measured, linearized, and converted to a 4–20 mA analog output, scaled according to industrial standards.
RTD and resistance inputs can be connected in 2-wire, 3-wire, or 4-wire configurations, enabling compensation for lead resistance to ensure precise measurements. A programmable burnout failure alarm allows the output to be driven high (20 mA) or low (4 mA) in the event of sensor fault.
The transmitter can be pre-configured at the factory or configured by the user using Datapro software and the CVPROG programming interface. The DAT1010-OEM is a loop-powered (2-wire) device with a wide power supply range from 10 V to 32 VDC, making it suitable for flexible integration into customer-designed systems.
| INPUT | OUTPUT | POWER SUPPLY |
|---|---|---|
| RTD Pt100, Pt1000, Ni100, Ni1000. Resistance 0-200 0-500 0-2kΩ | 4-20 mA | Power Supply Voltage 10-30Vdc |
| mV -100 to 700 mV Potentiometer up to 2 k Ω | Reverse polarity protection 60Vdc | |
| CURRENT CONSUMPTION | CONFIGURATION | ISOLATION |
| Between 20 mA | PC Programmable | None |
| EMC | HOUSING | TEMPERATURE |
| For Industrial environments | Material self-extinguishing | Operating Temperature -40°F +185°F -40°C +85°C |
| Immunity EN 61000-6-2 | Dimensions W x H 1 1/2" x 3/5" | Storage Temperature -40°F +185°F -40°C +85°C |
| Emission EN 6100-6-4 | 40 x 15.8 mm | Humidity (non condensing) 0-90% |
| Weight 1/5 oz 5 g |
| Input: | RTD Pt100, Pt1000, Ni100, Ni1000, mV, Potentiometer, |
| Resistance. See Datasheet for range. | |
| Output: | 4-20mA. |
| Power Supply: | 10 to 32 Vdc |
| Temperature rating: | Operative-4°F +158°F -20°C +70°C |
| Temperature Storage Temperature -40°F +185°F -40°C +85°C. | |
| Humidity: | (non condensing) 0-90%. |
| Housing: | Material self-extinguishing. |
| Dimensions: | Length 1 1/2 " Width 12" 41 mm X 15mm |
| Weight: | 3 oz 90 g. |
| EMC. | For industrial environments. |
| Immunity: EN 61000-6-2. | |
| Emission: EN 61000-6-4. | |
| Configuration: | PC Configurable |

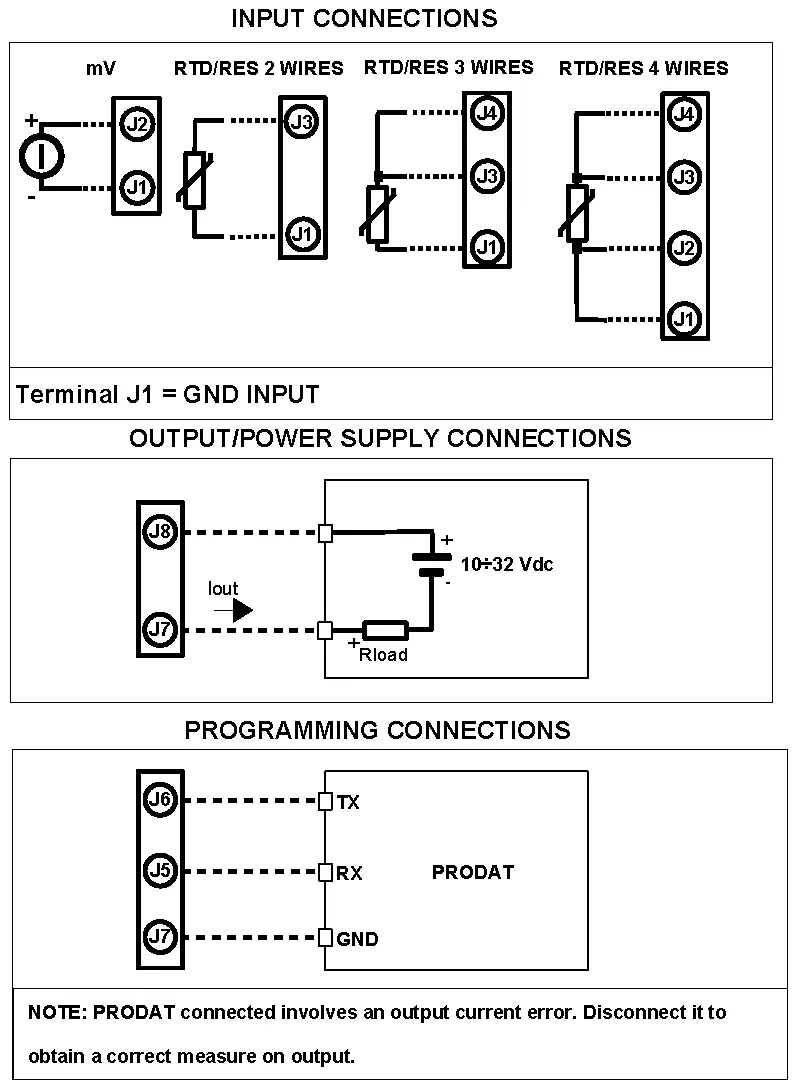

| Input | |
| mV | Positive J2 Negative J1 |
| RTD and Resistance 2 wires | Junction 1 and Junction 3 |
| RTD and Resistance 3 wires | Junction 1 and 3 Common 4 |
| RTD and Resistance 4 wires | Junction 1 Comp 2 and Junction 3 Comp 4 |
| Potentiometer | Junction 1 and 3 Wiper 4 |
| Output and Power supply | Positive Junction 8 Negative Junction 7 |
The DAT1010-OEM is an OEM temperature transmitter in PCB format, designed for integration into compact enclosures and custom assemblies. It offers the same performance as a standard head-mounted transmitter but in a board-only format ideal for OEM applications.
The DAT1010-OEM accepts a variety of sensor inputs, including RTDs (Pt100, Pt1000, Ni100, Ni1000), millivolt signals (–100 mV to +700 mV, min span 2 mV), resistance inputs (0–200 Ω, 0–500 Ω, 0–2000 Ω), and potentiometers (0–200 Ω, 200–500 Ω, 500–2000 Ω). All input signals are measured, linearized, and converted to a 4–20 mA analog output, scaled according to industrial standards.
RTD and resistance inputs can be connected in 2-wire, 3-wire, or 4-wire configurations, enabling compensation for lead resistance to ensure precise measurements. A programmable burnout failure alarm allows the output to be driven high (20 mA) or low (4 mA) in the event of sensor fault.
The transmitter can be pre-configured at the factory or programmed by the user using DATAPRO software and the CVPROG programming cable, both available from Datexel. The DAT1010-OEM is a loop-powered (2-wire) device with a wide power supply range from 10 V to 32 VDC.
