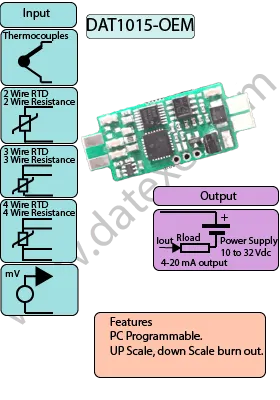

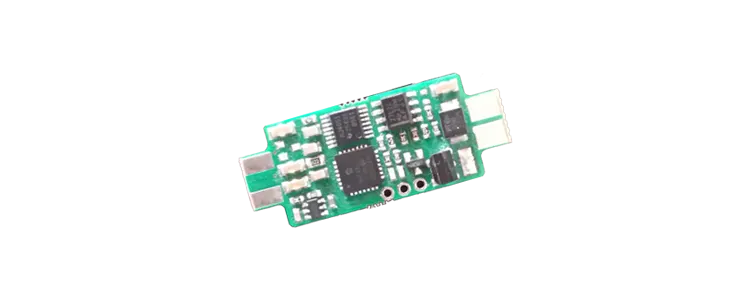

The DAT1015-OEM is a versatile OEM temperature transmitter PCB board, engineered to fit into compact enclosures. This transmitter supports a wide range of input signals, including RTDs, thermocouples, mV, resistance, and potentiometers, and converts them into a standard 4-20mA output.
Key Features:
- Pre-programmable: Can be pre-configured to customer specifications, or supplied with a connector for user configuration via the Prodat programmer and Prosoft software from Datexel.
- Wide Sensor Compatibility: Accepts various sensor inputs:
- RTDs: Pt100, Pt1000, Ni100, Ni1000
- Thermocouples: Types J, K, T, E, N, R, S, and B
- Resistance: Selectable ranges of 0-200 Ohms, 0-500 Ohms, and 0-2000 Ohms
- mV Input: Ranges from -100mV to 700mV, with a minimum span of 2mV
- Potentiometers: Resistance ranges of 0-200 Ohms, 200-500 Ohms, and 0.5 to 2 kOhms

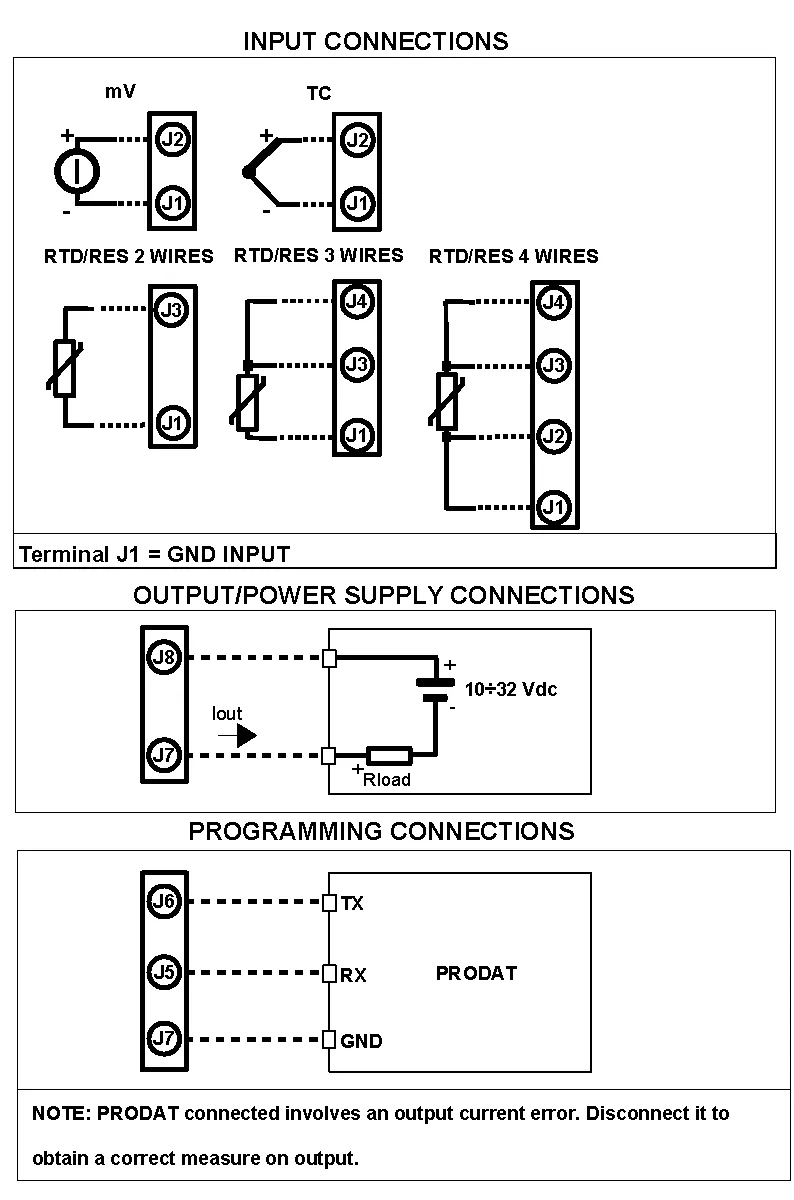

- Configurable Accuracy: RTD and resistance inputs can be set up for 2-wire configurations or use compensation wires for enhanced accuracy (3-wire or 4-wire setups).
- Burnout Alarm: Programmable burnout failure alarm can be set to signal high (20mA) or low (4mA).
- Power Supply Tolerance: Operates within a voltage range of 10 to 32 Volts, ensuring robust performance in varied conditions.
- Loop-Powered Design: Operates as a 2-wire device, simplifying installation and operation.
The DAT1015-OEM combines flexibility with precision, making it an ideal choice for applications requiring reliable temperature measurements in constrained spaces.
| INPUT |
OUTPUT |
POWER SUPPLY |
| Thermocouples J, K, S, R, B, E, T and N. |
4-20 mA |
Power Supply Voltage 10-30Vdc |
| RTD Pt100, Pt1000, Ni100, Ni1000.
Resistance 0-200 0-500 0-2kΩ |
|
Reverse polarity protection 60Vdc |
| mV -100 to 700 mV
Potentiometer up to 2 k Ω |
|
|
| CURRENT CONSUMPTION |
CONFIGURATION |
ISOLATION |
| Between 20 mA |
PC Programmable |
None |
| EMC |
HOUSING |
TEMPERATURE |
| For Industrial environments |
Material self-extinguishing |
Operating Temperature -40°F +185°F -40°C +85°C |
| Immunity EN 61000-6-2 |
Dimensions W x H 1 1/2" x 3/5" |
Storage Temperature -40°F +185°F -40°C +85°C |
| Emission EN 6100-6-4 |
40 x 15.8 mm |
Humidity (non condensing) 0-90% |
|
Weight 1/5 oz 5 g |
|
