Programmable Process Limit Alarm with Analog Output

DAT5024AO

DAT5024AO Programmable Process Limit Alarm with Analog Output.
Programmable Process Limit Alarm with Analog Output DAT5024AO.

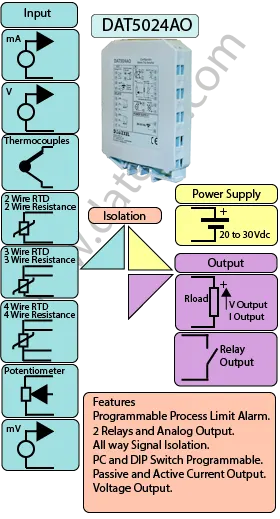

• Universal Input
• Output 2 Relays
• Current and Voltage Output
• DIP Switch Configurable
• PC Programmable
• DIN Rail Mounted
General Description

The DAT5024AO Process Limit Alarm with dual relays and analog output is a versatile and programmable signal monitoring device. Unlike the DAT5024P, this model includes both relay outputs and an additional analog output, making it ideal for applications requiring both trip functionality and continuous signal retransmission.

With a universal input, the DAT5024AO can be configured to accept thermocouples, RTDs, resistance, current (mA), voltage, and millivolt signals. Outputs include two independent SPDT relays rated 2 A at 250 VAC or 2 A at 30 VDC, along with an analog output that can be configured for either voltage or current (active or passive).

The hysteresis is programmable from 0.5% to 10% of full scale, and the trip delay can be adjusted between 1 and 25 seconds. The trip level can be set from 2% to 98% of the measurement range, providing high flexibility for process monitoring and safety alarms.

Programming can be performed via DIP switches or through PC configuration using the CVPROG cable. When set up with DIP switches, the analog output (e.g., 4–20 mA) corresponds directly to the predefined sensor range on the datasheet, such as –200 to 1300 °C for a K-type thermocouple. Using PC programming, these ranges can be customized to suit application requirements.

Complete galvanic isolation up to 1500 VAC is provided between inputs, outputs, and power supply, ensuring safe operation in industrial environments. This makes the DAT5024AO a cost-effective and flexible solution for both process limit alarms and analog signal retransmission.

INPUT OUTPUT POWER SUPPLY
Thermocouples, RTD's, mA. 4-20 mA, 0-20mA. 0-10 V, 0-5V. Power Supply Voltage 20-30Vdc
Voltage, Potentiometers, mV, Resistance. 2 Relays SPDT Reverse polarity protection 60Vdc
CURRENT CONSUMPTION CONFIGURATION ISOLATION
Between 70 mA PC Programmable Between Input/Comms/Power Supply 1500Vac.
EMC HOUSING TEMPERATURE
For Industrial environments Material self-extinguishing Operating Temperature 14°F +140°F -20°C +60°C
Immunity EN 61000-6-2 Dimensions W x H x T 3 3/4" x 4 1/2" x 3/4" Storage Temperature -40°F +185°F-40°C +85°C
Emission EN 6100-6-4 90 x 112x x 20.50 mm Humidity (non condensing) 0-90%
Weight 4 oz 125 g
DAT5024AO Datasheet
Buy Online
Applications
Drawings
Trip Amplifier and Process Limit Alarms

Specifications

Input: K Type Thermocouple, J Type Thermocouple, R Type Thermocouple, S Type Thermocouple, T Type Thermocouple. RTD, Resistance, mV, V, mA.
See Datasheet for range.
Output: Analog 4-20mA. 0-10V
Output: Relay 2 X SPDT Relays.
Power Supply: 12 to 30 Vdc
Temperature rating: Operative -4°F +140°F -20°C +60°C
  Temperature Storage Temperature -40°F +185°F -40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material self-extinguishing.
Dimensions: 3 1/2" x 4 1/2" x 13/16"
90 x 112 x 20.5 mm
Weight: 5 oz 125 g.
EMC. For industrial environments.
Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.
Configuration: DIP Switch Configurable and PC Programmable.
Drawings

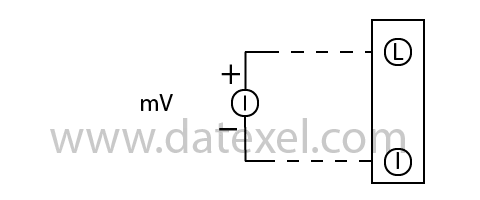

mV Input Circuit

Input mV
Positive L Negative I
DAT5024AO mV input.

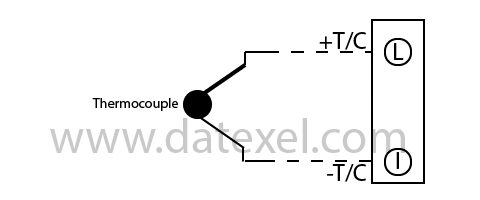

Thermocouple Input Circuit

Input Thermocouple
Positive L Negative I
DAT5024AO Thermocouple input.

2 Wire RTD and Resistance Input Circuit

Input 2 Wire RTD, Resistance. Configured by PC
G and I
DAT5024AO 2 Wire RTD and Resistance input.

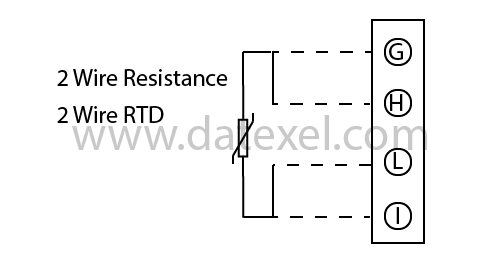

2 Wire RTD and Resistance Input Circuit

Input 2 Wire RTD, Resistance. Configured by DIP Switches
G and H, L and I
DAT5024AO 2 Wire Resistance, 2 Wire RTD.

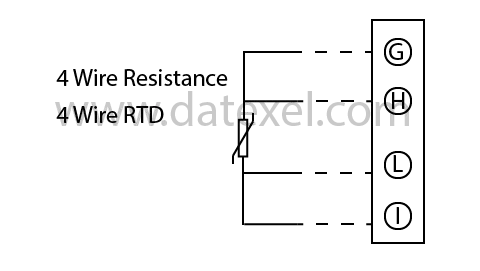

4 Wire RTD and Resistance Input Circuit

Input 2 Wire RTD, Resistance. Configured by DIP Switches
G and H, L and I
DAT5024AO 4 Wire Resistance, 4 Wire RTD Input Configured by DIP Switches.

3 Wire RTD and Resistance Input Circuit

Input 3 Wire RTD, Resistance.
G and H, I
DAT5024AO 3 Wire Resistance, 3 Wire RTD Input.

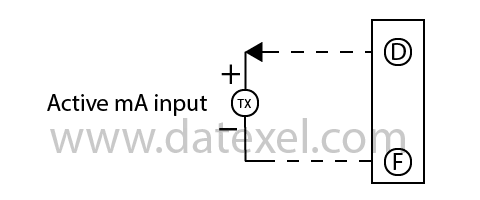

Active mA Input Circuit

Input Active mA
Positive D Negative F
DAT5024AO Current Active Input.

Passive mA Input Circuit

Input Passive mA Input
Positive F Negative C
DAT5024AO Current Passive Input.

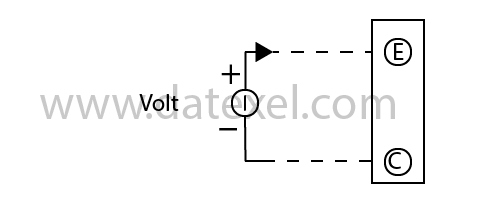

Voltage Input Circuit

Input Voltage
Positive E Negative C
DAT5024AO Voltage Input.

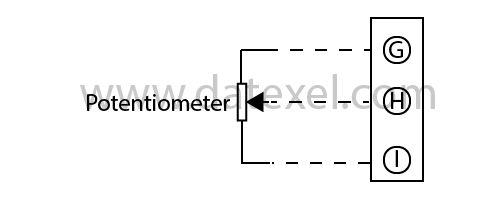

Potentiometer Input Circuit

Input Potentiometer
G and I Wiper H
DAT5024AO Potentiometer Input.

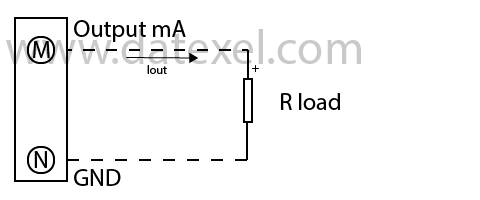

Active Current Output

Output Active Current Output
Positive M Negative N
DAT5024AO Active Current Output.

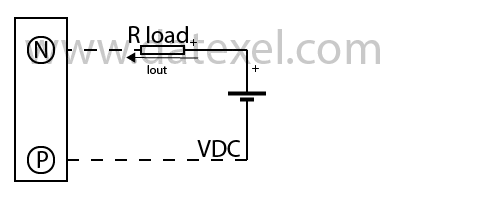

Passive Current Output

Output Voltage Output
Positive N Negative P
DAT5024AO Active Passive Output.

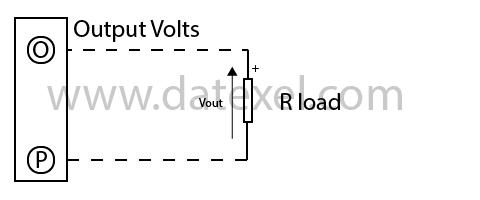

Voltage Output

Output Voltage Output
Positive O Negative P
DAT5024AO Voltage Output.

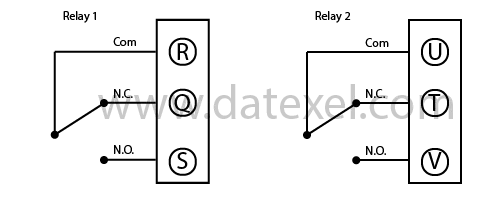

Relay Output Circuit

Relay 1CommonR
Normally ClosedQ
Normally OpenS
Relay 2CommonU
Normally ClosedT
Normally OpenV
DAT5024AO Relay Output.

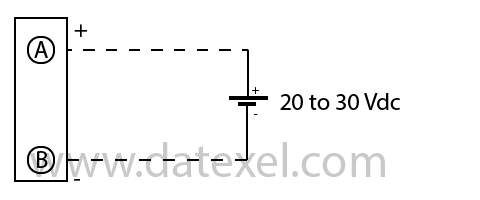

Power Supply Circuit

Power Supply
Positive A Ground B
DAT5024AO Power Supply.

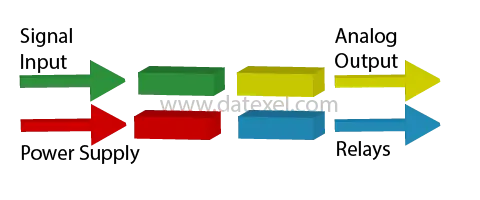

Isolation Structure

DAT5024AO Isolation Structure.
Applications

DAT5024AO Custom made products.

What is a DAT 5024A0 110220?
The DAT5024A0 110220 is a process limit alarm with a on delay of more than 25s and a off delay.

Frequently Asked Questions about DAT5024AO

What is the DAT5024AO?
The DAT5024AO is a programmable process limit alarm with dual relays and an additional analog output for signal retransmission.
What types of inputs does it accept?
The device supports thermocouples, RTDs, resistance, current (mA), voltage, and millivolt signals.
What outputs does the DAT5024AO provide?
It provides two SPDT relay outputs rated 2 A at 250 VAC or 2 A at 30 VDC, along with an isolated analog output that can be configured as voltage or current (active or passive).
How is the DAT5024AO configured?
It can be programmed via DIP switches for basic setup or through PC software with the CVPROG cable for custom configuration.
What are the trip settings?
The trip level can be set from 2% to 98% of the input range. Hysteresis is adjustable between 0.5% and 10% of full scale, and delay can be set from 1 to 25 seconds.
Can the relays be used independently?
Yes. Each relay can be set for high or low operation, and both can be configured together for high-high or low-low conditions.
How does the analog output work?
When configured via DIP switches, the analog output (e.g., 4–20 mA) matches the sensor’s standard range (such as –200 to 1300 °C for a K-type thermocouple). With PC programming, the range can be customized to suit the application.
Does the device provide isolation?
Yes. Inputs, outputs, and power supply are isolated up to 1500 VAC for safe and reliable operation in industrial environments.
