Programmable Trip Alarm

DAT5024P

DAT5024P Programmable Trip Alarm with 2 Relays.
Buy Online

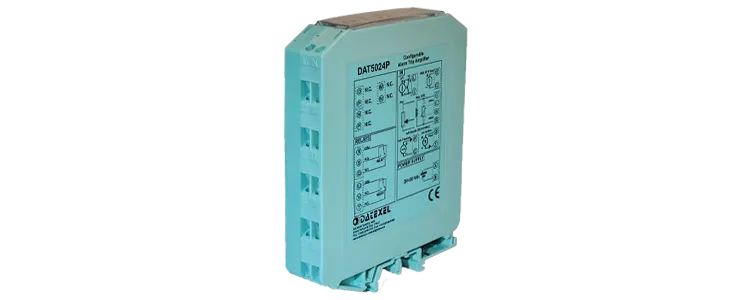

Programmable Trip Alarm DAT5024P.
• Universal Input
• Output 2 Relays
• DIP Switch Configurable
• PC Programmable
• DIN Rail Mounted

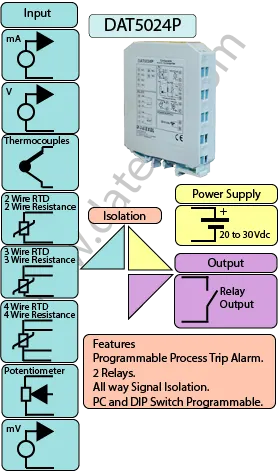

General Description

The DAT5024P Trip Amplifier or Trip Amp) is a programmable device with two relay outputs, designed for monitoring process signals and triggering alarms or control actions.

Featuring a universal input, the DAT5024P can be configured for a wide variety of signals including thermocouples, RTDs, resistance, mA, voltage, and millivolt inputs. This makes it an ideal choice for maintaining a single spare unit that can be calibrated or reprogrammed for any required application.

The two relay outputs are SPDT (Single Pole Double Throw) contacts, rated at 2 A, 250 VAC or 2 A, 30 VDC. Each relay can be independently configured for high or low trip operation, with the option to use both for high-high or low-low settings. Hysteresis is programmable from 0.5% to 10% of full scale, while trip delay is adjustable between 1 and 25 seconds. The trip level itself can be set anywhere between 2% and 98% of full scale.

The DAT5024P is DIP switch programmable or can be configured via PC using the CVPROG programming cable. Complete galvanic isolation (1500 VAC) is provided between inputs, outputs, and power supply, ensuring safe and interference-free operation in industrial environments.

INPUT OUTPUT POWER SUPPLY
Thermocouples, RTD's, mA. 2 Relays SPDT Power Supply Voltage 20-30Vdc
Voltage, Potentiometers, mV, Resistance. Reverse polarity protection 60Vdc
CURRENT CONSUMPTION CONFIGURATION ISOLATION
Between 70 mA PC Programmable Between Input/Comms/Power Supply 1500Vac.
EMC HOUSING TEMPERATURE
For Industrial environments Material self-extinguishing Operating Temperature 14°F +140°F -20°C +60°C
Immunity EN 61000-6-2 Dimensions W x H x T 3 3/4" x 4 1/2" x 3/4" Storage Temperature -40°F +185°F-40°C +85°C
Emission EN 6100-6-4 90 x 112x x 20.50 mm Humidity (non condensing) 0-90%
Weight 4 oz 125 g

Specifications

Input: K Type Thermocouple, J Type Thermocouple, R Type Thermocouple, S Type Thermocouple, T Type Thermocouple. RTD, Resistance, mV, V, mA.
See Datasheet for range.
Output: Relay 2 X SPDT Relays.
Power Supply: 12 to 30 Vdc
Temperature rating: Operative -4°F +140°F -20°C +60°C
  Temperature Storage Temperature -40°F +185°F -40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material self-extinguishing.
Dimensions: 3 1/2" x 4 1/2" x 13/16"
90 x 112 x 20.5 mm
Weight: 5 oz 125 g.
EMC. For industrial environments.
Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.
Configuration: DIP Switch Configurable and PC Programmable.
Drawings

mV Input Circuit

Input mV
Positive L Negative I
DAT5024P mV input.

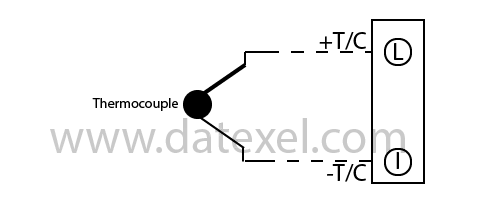

Thermocouple Input Circuit

Input Thermocouple
Positive L Negative I
DAT5024P Thermocouple input.

2 Wire RTD and Resistance Input Circuit

Input 2 Wire RTD, Resistance. Configured by PC
G and I
DAT5024P 2 Wire RTD and Resistance input.

2 Wire RTD and Resistance Input Circuit

Input 2 Wire RTD, Resistance. Configured by DIP Switches
G and H, L and I
DAT5024P 2 Wire Resistance, 2 Wire RTD.

4 Wire RTD and Resistance Input Circuit

Input 2 Wire RTD, Resistance. Configured by DIP Switches
G and H, L and I
DAT5024P 4 Wire Resistance, 4 Wire RTD Input Configured by DIP Switches.

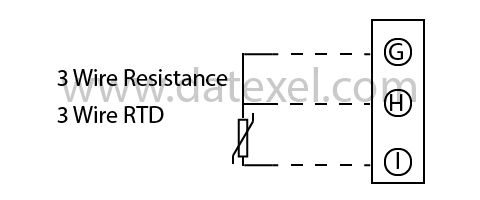

3 Wire RTD and Resistance Input Circuit

Input 3 Wire RTD, Resistance.
G and H, I
DAT5024P 3 Wire Resistance, 3 Wire RTD Input.

Active mA Input Circuit

Input Active mA
Positive D Negative F
DAT5024P Current Active Input.

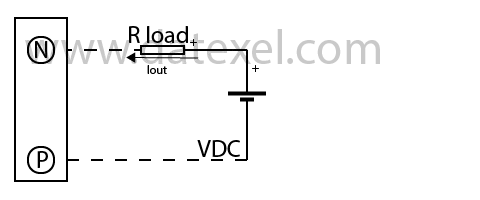

Passive mA Input Circuit

Input Passive mA Input
Positive F Negative C
DAT5024P Current Passive Input.

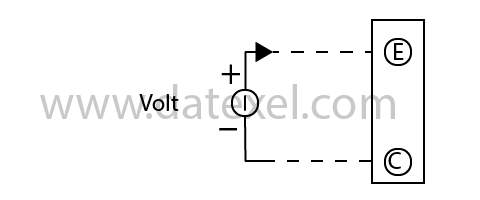

Voltage Input Circuit

Input Voltage
Positive E Negative C
DAT5024P Voltage Input.

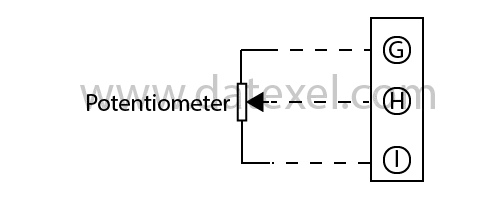

Potentiometer Input Circuit

Input Potentiometer
G and I Wiper H
DAT5024P Potentiometer Input.

Relay Output Circuit

Relay 1CommonR
Normally ClosedQ
Normally OpenS
Relay 2CommonU
Normally ClosedT
Normally OpenV
DAT5024P Relay Output.

Power Supply Circuit

Power Supply
Positive A Ground B
DAT5024P Power Supply.

Isolation Structure

DAT5024P Isolation Structure.
Applications

DAT5024P Custom made products.

What is a DAT 5024P 260919?
The DAT5024P 260919 is a trip alarm that has an input for a gear mounted Epcos triple thermistor.

Frequently Asked Questions about DAT5024P

What is the DAT5024P?
The DAT5024P is a programmable limit alarm (also called a trip amplifier or trip amp) with two relay outputs, used for monitoring process signals and triggering alarms or control actions.
What types of inputs does the DAT5024P accept?
It has a universal input that can be configured for thermocouples, RTDs, resistance, millivolt, voltage, and current (mA) signals.
How many relays does the DAT5024P have?
It has two SPDT (Single Pole Double Throw) relay outputs, each rated for 2 A at 250 VAC or 2 A at 30 VDC.
Can I configure the relays for different trip conditions?
Yes. Each relay can be set for high or low operation, or both relays can be used together for high-high or low-low conditions.
What are the trip adjustment options?
The trip level can be set between 2% and 98% of full scale. Hysteresis is programmable from 0.5% to 10%, and trip delay can be adjusted from 1 to 25 seconds.
How is the DAT5024P programmed?
It can be configured using DIP switches on the device or via PC with the CVPROG programming cable.
Does the device provide isolation?
Yes. The input, output, and power supply are galvanically isolated up to 1500 VAC to eliminate ground loops and interference.
