Signal Conditioning Modbus

DAT3011

DAT3011 Signal Conditioning Modbus.
Buy Online

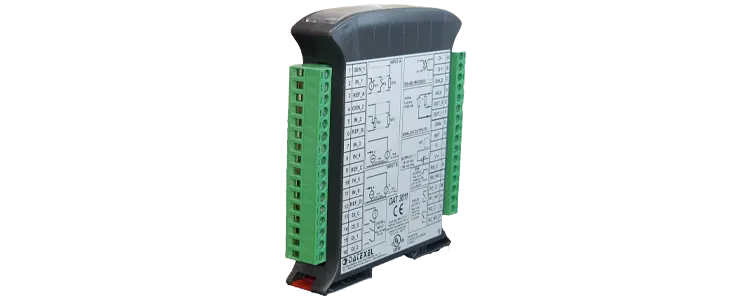

Signal Conditioning Modbus RTU DAT3011
• UL, CSA, CE.
• Modbus RTU Slave.
• 2 Analog Inputs 1 Universal and 1 mA/Voltage.
• 2 Analog Outputs 4-20mA.
• 3 Digital Inputs.
• 3 Digital Outputs.
• Isolation.

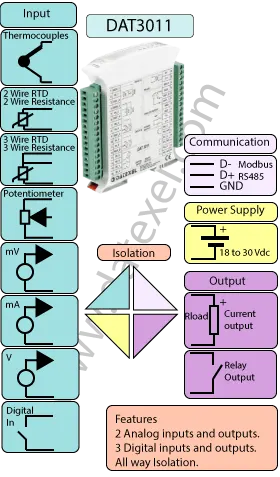

General Description

The DAT3011 Signal Conditioning Modbus RTU Module is a multifunction signal converter that combines universal analog inputs, analog outputs, and digital I/O with an RS-485 Modbus RTU slave interface. It acquires signals from thermocouples, RTDs, resistance, mA, volts/mV, and potentiometers and can retransmit them while publishing data to a Modbus network.

I/O summary: 2 analog inputs, 3 digital inputs (up to 3 kHz), 2 analog outputs, 1 SSR (digital) output, and 2 relay outputs. The analog outputs can be used for signal retransmission (e.g., 4–20 mA) in parallel with Modbus data transfer.

The DAT3011 can be configured to operate as a signal converter, signal splitter, trip amplifier (limit alarm), or a dual signal conditioner, providing exceptional flexibility for process control and monitoring.

It features 1500 Vac galvanic isolation between inputs, outputs, power supply, and RS-485 port, and uses a 16-bit conversion architecture for accurate measurement and stable performance in industrial environments.

INPUT OUTPUT POWER SUPPLY
mV, Volts, mA, Digital Inputs. 2 X Current 4-20mA. Power Supply Voltage 18-30Vdc
RTD, Resistance, Potentiometer,Thermocouples. 1 Solid State Relay.2 SPST Relays. Reverse polarity protection 60Vdc
CURRENT CONSUMPTION CONFIGURATION ISOLATION
Between 30 and 100 mA PC Programmable Between Input/Output/RS485/Power Supply 1500Vac.
EMC HOUSING TEMPERATURE
For Industrial environments Material self-extinguishing Operating Temperature 14°F +140°F -10°C +60°C
Immunity EN 61000-6-2 Dimensions W x H x T 4" x 4 3/4" x 3/4" Storage Temperature -40°F +185°F-40°C +85°C
Emission EN 6100-6-4 100 x 120x x 22.5 mm UL Operative Temperature 14°F +104°F -10°C +40°C
Weight 3 oz 90 g
DAT3011 Datasheet
Buy Online
Applications
Drawings
DAT3011 User Guide
Modbus Analog Input Modules
Application Note

Specifications
Communication:
RS485: Modbus RTU Slave.
Input : Analog
Channel 0: mV -100 to 100mV
Volts -100mV to 10V
Current 4-20mA, 0-20mA.
RTD Pt100, Pt 1000, Ni100, Ni1000.
Resistance 0-2000 Ohm
Potentiometer 20-2000 Ohm
Thermocouple J,K,R,S,B,E,T, N.
Channel 1: mV -100 to 100mV
Volts -100mV to 10V
Current 4-20mA, 0-20mA.
Digital
Channel 1, 2 and 3 Off condition 0-3 V, On condition 10-30V.
Output: Analog
Channel 1 and 2 Current 4-20mA.
  Digital
Channel 1 Solid Sate Relay
Channel 2 and 3 SPST Relay 2 A 250Vac.
Power Supply: Voltage 18 - 30 Vdc. Reverse polarity protection 60 Vdc.
Current Consumption: 60 mA up to 170 mA max.
Temperature rating: Operative Temperature -4°F +140°F -20°C +60°C Storage Temperature -40°F +185°F -40°C +85°C.
Humidity: (not condensing) 0-90%.
Housing: Material self-extinguishing.
Dimensions: W x L x H 3 3/4X 3 1/2 X 1 7/8 inch, 90 x 74 x 48mm.
Weight: 5 oz 150 g.
EMC. For industrial environments.
Immunity: EN 61000-6-2.
Emission: EN 61000-6-4.
Isolation: Between Modbus Master, Slave/Power supply 1500Vac, 50Hz, 1 Minute.
Configuration: PC Configurable.

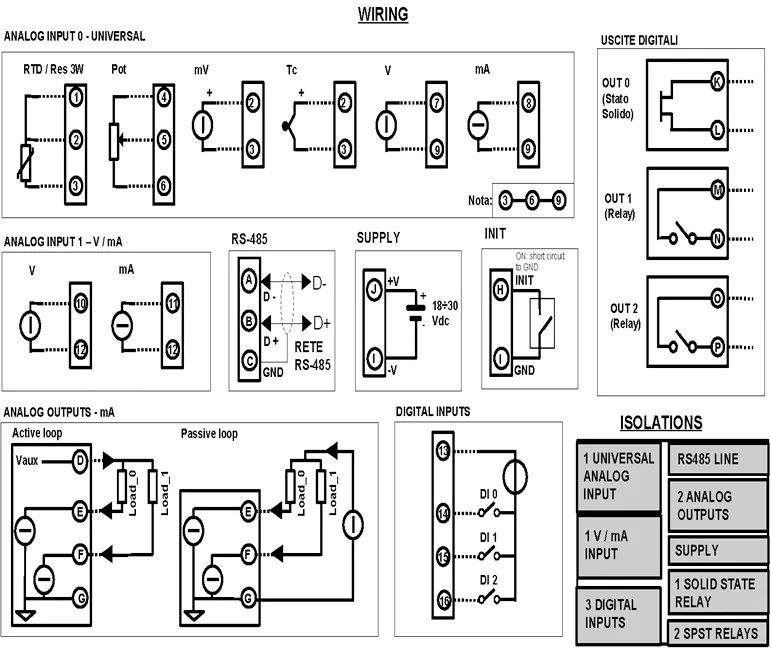

Drawings

Power Supply and interrupt

Input. Channel 0 Channel 1
Analog
RTD and Resistance 2 Wire 2 and 3 N/A
Potentiometer 6 and 4 Wiper 5 N/A
RTD 3 Wire 2 and 3 Compensation 1 N/A
mV Positive 2 Negative 3 N/A
Thermocouple Positive 2 Negative 3 N/A
Volts Positive 7 Negative 9 Positive 10 Negative 12
mA Positive 8 Negative 9 Positive 11 Negative 12
Digital
DI0 Common 13 Input 14
DI1 Common 13 Input 15
DI1 Common 13 Input 16
Output
Analog
Current Active Positive D Negative E Positive D Negative F
Current Passive Positive G Negative E Positive G Negative F
Output
Solid State  K and L
Relay Common M, NO N. Common O, NO D.
Power Supply (18-30Vdc). Positive J Negative I.
RS 485 Slave Positive (D+)B Negative (D-) A GND 9
Init Pin H Init Pin GND I
Signal Conditioning Modbus RTU DAT3011.
Applications
DAT3011 Custom products
The DAT3011 has been and can be customized to suit particular applications. Below is a selection of custom designs.
What is a DAT 3011 30212?
The 3011 30212 was designed to have two x Pt100 RTD inputs, four x 4-20mA inputs and two x 0-10Vdc inputs.
What is a DAT 3011 160212?
The 3011 160212 was designed to have two x Pt100 RTD inputs, two x 4-20 mA inputs.
What is a DAT 3011 100314?
The 3011 100314 was designed to have three x Pt100 RTD inputs, one x 4-20 mA inputs and a x 0-10Vdc inputs.
What is a DAT 3011 231015?
The 3011 231015 was designed to have analog inputs, and 0-10 Vdc output.
What is a DAT 3011 301115?
The 3011 301115 was designed to have analog inputs, and each digital output command bits on single registers.
What is a DAT 3011 41215?
The 3011 41215 was designed to have three x Pt100 RTD inputs, two x 4-20mA inputs and two x 0-10Vdc inputs.
What is a DAT 3011 10416?
The 3011 10416 was designed to have three x Pt100 RTD inputs, two x 4-20mA inputs also with digital inputs and digital outputs.
What is a DAT 3011 221216?
The 3011 221216 was designed to have two x K type Thermocouple inputs, two x 0-10 Vdc4-20mA inputs also with three digital inputs and two digital outputs.
What is a DAT 3011 120619?
The 3011 120619 was designed to only accept 4-20 mA input channels.
What is a DAT 3011 50819?
The 3011 50819 was designed to accept 8 NTC 10 K Carel type thermistors and has linearization.
What is a DAT 3011 180121?
The 3011 180121 was designed to have a Pt100 RTD inputs, and two x 4-20 mA inputs.
What is a DAT 3011 50221?
The 3011 50221 was designed to have two Pt100 RTD inputs, and two x 4-20 mA inputs.
What is a DAT 3011 10920?
The 3011 10920 was designed in conjunction with the DAT9550. It measures two Pt100 RTD's and displays on the DAT9550 the differential temperature, and provides a 4-20 mA output equal to the differential temperature.
What is a DAT 3011 41116?
The DAT 3011 41116 has a communication port set up as stop bits = 2, Parity = None and Number of Bits = 8.

Frequently Asked Questions about DAT3011

What signals can the DAT3011 accept?
Universal analog inputs: thermocouples, RTDs, resistance, current (mA), voltage/millivolts, and potentiometers.
What I/O does the DAT3011 provide?
2 analog inputs, 3 digital inputs (up to 3 kHz), 2 analog outputs, 1 SSR (digital) output, and 2 relay outputs.
How does it communicate?
RS-485 Modbus RTU slave. It can retransmit as analog output while simultaneously publishing data over Modbus.
What functions can it perform?
It can be configured as a signal converter, signal splitter, trip amplifier (limit alarm), or dual signal conditioner.
What is the resolution and isolation?
16-bit conversion with 1500 Vac galvanic isolation between inputs, outputs, power supply, and RS-485 port.
Can the digital inputs count pulses?
Yes. The three digital inputs support frequencies up to 3 kHz, suitable for counting/edge detection applications.
