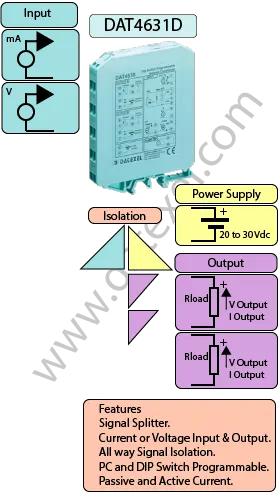

Voltage Splitter and Current Splitter DAT4631D.
• UL, CSA, CE.
• mA Isolated Splitter
• Isolated Voltage Splitter
• Input 0-10V and 0-20mA,
• DIP Switch Configurable
• PC Programmable
• Output Passive or Active Current
• DIN Rail Mounted
General Description

The DAT4631D is a DIN rail mount isolated signal converter and splitter designed for accurate measurement and duplication of DC voltage or current (mA) signals. It accepts a single analog input and provides two independent and isolated analog outputs, either in voltage or current format. The device linearizes the signal and ensures high signal integrity through 1500 Vac galvanic isolation. Configuration is quick and flexible via PC software or onboard DIP switches.

Key Features

  • Signal Splitting Function: Converts a single voltage or current input into two identical and isolated outputs.
  • Voltage Input Compatibility: Accepts 0-10V, 1-5V, 2-10V, 0-5V, and other common DC voltage signals.
  • Current Input Capability: Supports 4-20mA, 0-20mA, and other mA inputs with a minimum span of 1 mA.
  • Linearized Analog Outputs: Provides precise and linear voltage or current outputs per channel.
  • Dual Output Configuration: Each output is individually isolated from the other and the input circuit.
  • High Accuracy: Optimized for demanding industrial and process control applications.
  • Fully Isolated: 1500 Vac isolation between input, each output, and power supply for maximum safety.
  • Programmable via PC or DIP Switches: Easily configured for specific ranges and applications.

The DAT4631D is ideal for applications where a DC signal from a sensor, transmitter, or PLC must be sent to two different systems simultaneously. Its splitter functionality is commonly used in redundant control loops, signal monitoring, and logging systems while maintaining isolation and accuracy.

INPUT OUTPUT POWER SUPPLY
mA 2 x Current 4-20 mA Power Supply Voltage 18-32Vdc
Voltage 2 X 0-10 V Reverse polarity protection 60Vdc
1 Relay
CURRENT CONSUMPTION CONFIGURATION ISOLATION
Between 35 mA DIP Switch Programmable Between 3 way 1500Vac.
PC Programmable
EMC HOUSING TEMPERATURE
For Industrial environments Material self-extinguishing Operating Temperature -4°F +158°F -20°C +70°C
Immunity EN 61000-6-2 Dimensions W x H x T 3 1/2" x 4 1/2" x 1/2 " Storage Temperature -40°F +185°F-40°C +85°C
Emission EN 6100-6-4 90 x 112x x 12.5 mm Humidity (non condensing) 0-90%
Weight 3 oz 90 g

Specifications

Input:Channel A Current 4-20mA, Range 0-20mA Minimum span 1 mA. Voltage Range from 0 to 10 V Minimum span 1 V. See Data sheet for range.
Input:Channel B Current 4-20mA, Range 0-20mA Minimum span 1 mA. Voltage Range from 0 to 10 V Minimum span 1 V. See Data sheet for range.
Output: 2 X 4-20mA, 0-20mA, 0-10V.
Power Supply: 18 to 30 Vdc. Reverse polarity protection 60 Vdc.
Current Consumption: Current output 55 mA max. Voltage output 25 mA max.
Temperature rating: Operative -4°F +158°F -20°C +70°C
  Temperature Storage Temperature -40°F +185°F -40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material self-extinguishing.
Dimensions: 3 1/2" x 4 1/2 " x 1/2", 90 x 112x x 12.5 mm.
Weight: 3 oz 90 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.
Configuration: PC Configurable and DIP Switch Configurable
Drawings

Signal Inputs

Voltage and Current Input

Input: Channel A
Voltage Positive G and Negative I
mA Positive L and Negative I
Input: Channel B
Voltage Positive H and Negative E
mA Positive F and Negative E
Output Channel A
Current Positive N Negative M.
Voltage Positive N Negative M
Output Channel B
Current Positive P Negative O.
Voltage Positive P Negative O
Power supply Positive Q Negative R.
Voltage and Current Splitter wiring Diagram.
Applications

DAT4631D - Frequently Asked Questions

What is the main function of the DAT4631D?
The DAT4631D acts as a signal splitter, taking one DC voltage or mA input and producing two identical, isolated analog outputs in voltage or current format.
What voltage and current ranges does it support?
It supports 0-10V, 1-5V, 2-10V, 0-5V voltage inputs, and current inputs such as 4-20mA and 0-20mA with a minimum span of 1 mA.
Are the outputs isolated from each other?
Yes, each output is fully isolated from the input, the other output, and the power supply, ensuring safety and signal integrity.
What output signals are available?
You can configure each output for voltage (e.g., 0-10V) or current (e.g., 4-20mA) using DIP switches or PC software.
How do I configure the DAT4631D?
Configuration is done using either PC software for detailed setup or DIP switches for quick field adjustments.
