Voltage to Modbus converter

DAT3015V

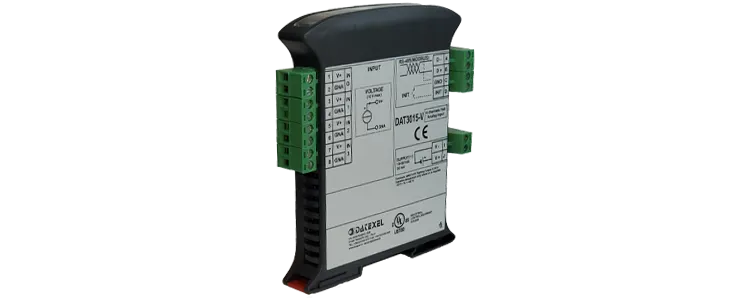

DAT3015-V Voltage to Modbus converter.
Buy Online

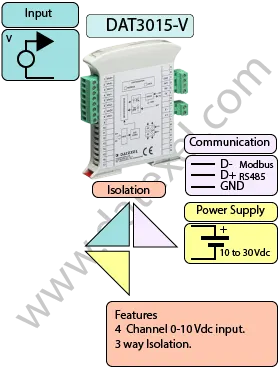

Voltage to Modbus converter DAT3015V.
• UL, CSA, CE.
• Modbus RTU Slave.
• 4 x -10 to 10 V, 0-10V input..
• RS485 Communication.
• Isolation.
General Description

The DAT3015-V Voltage to Modbus Converter is a 4-channel input module designed for acquiring DC voltage signals and transmitting them digitally over a Modbus network. It converts the analog voltage input into a precise 16-bit digital format for integration with PLCs, SCADA, and other Modbus master devices.

Each channel supports a full-scale input of –10 to +10 VDC, making the module suitable for monitoring a wide variety of process signals and transducers.

Communication is available over RS-485 using the Modbus RTU protocol, with an option for RS-232 Modbus ASCII format. The DAT3015-V is configured using the free DAT3000–10000 configuration software, downloadable from our website, which provides advanced setup and calibration.

INPUT OUTPUT POWER SUPPLY
0-10 Vdc Modbus RTU Power Supply Voltage 10-30Vdc
-10 to 10 V , 0-1 V. Reverse polarity protection 60Vdc
CURRENT CONSUMPTION CONFIGURATION ISOLATION
Between 30 and 100 mA DIP Switch Between Input/Comms/Power Supply 2000Vac.
PC Programmable
EMC HOUSING TEMPERATURE
For Industrial environments Material self-extinguishing Operating Temperature 14°F +140°F -10°C +60°C
Immunity EN 61000-6-2 Dimensions W x H x T 4.1/4" x 4 1/2" x 2 1/4" Storage Temperature -40°F +185°F-40°C +85°C
Emission EN 6100-6-4 106 x 112x x 57 mm Humidity (non condensing) 0-90%
Weight 7 oz 200 g
DAT3015V RS485 Datasheet
Buy Online
Applications
Drawings
DAT3015-V User Guide
Specifications
Modbus Analog Input Modules
Application Note

Specifications
Input:
Voltage: 4 Channels -10 to 10 Volts
Communication:
RS485: Modbus RTU Slave.
RS232: Modbus Slave.
Power Supply: 10 - 30 Vdc. Reverse polarity protection 60 Vdc.
Current Consumption: 30 mA.
Temperature rating: Operative Temperature -4°F +140°F -20°C +60°C
Storage Temperature -40°F +185°F -40°C +85°C.
Humidity: (not condensing) 0-90%.
Housing: Material self-extinguishing.
Dimensions: W x L x H 3 3/4X 3 1/2 X 1 7/8 inch, 90 x 74 x 48mm.
Weight: 7 oz 200 g.
EMC. For industrial environments.
Immunity: EN 61000-6-2.
Emission: EN 61000-6-4.
Isolation: Between Modbus Master, Slave/Power supply 1500Vac, 50Hz, 1 Minute.
Configuration: PC Configurable.

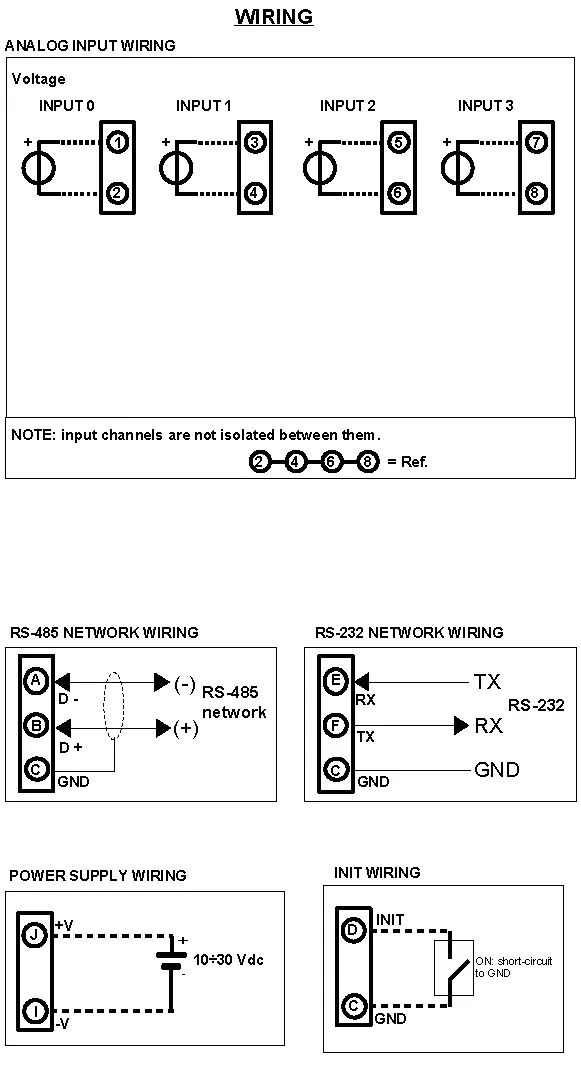

Drawings

Power Supply, Inputs and INIT

Voltage Input 0 Positive 1 Negative 2
Voltage Input 1 Positive 3 Negative 4
Voltage Input 2 Positive 5 Negative 6
Voltage Input 3 Positive 7 Negative 8
Power Supply (18-30Vdc). Positive J Negative I.
RS 485 Slave Positive (D+)B Negative (D-) A GND 6
RS-232D C GND
  E RX
  F TX
Init Pin D Init Gnd C
Voltage to Modbus converter DAT3015V.

Applications
What is a DAT 3015V 181110_1?
The DAT 3015V 181110_1 has a higher 10 MOhm input impedance on the 0-10 V input circuit.

Frequently Asked Questions about DAT3015-V

What is the DAT3015-V?
The DAT3015-V is a 4-channel Modbus converter for voltage signals, converting them into a 16-bit digital format over RS-485 (Modbus RTU) or RS-232 (Modbus ASCII).
What input ranges does it support?
Each channel accepts –10 to +10 VDC.
How many channels does it provide?
The module provides 4 independent voltage input channels.
How is the DAT3015-V configured?
The DAT3015-V is configured exclusively using the free DAT3000–10000 software, downloadable from our website. It cannot be configured with DIP switches.
What is the resolution of the conversion?
The voltage inputs are digitized with 16-bit resolution, ensuring high accuracy and stable performance.
How does it communicate?
The DAT3015-V communicates via RS-485 using the Modbus RTU protocol and is also available in an RS-232 Modbus ASCII version.
What applications is it used for?
The DAT3015-V is typically used for integrating analog voltage signals from transducers, sensors, and instruments into PLCs, SCADA systems, and Modbus networks.
