The DAT2014 is a 2-channel Modbus RTU converter designed for RTD and resistance sensors. It functions as a Modbus slave device, transmitting precise temperature and resistance data to PLCs, HMIs, or SCADA systems over the RS-485 network.

What types of inputs does it support?

The device supports 2- or 3-wire RTD sensors (such as Pt100, Pt1000, Ni100) and generic resistance inputs, offering flexibility for temperature and process monitoring applications.

How is the DAT2014 configured?

The module can be configured remotely via the RS-485 interface using free configuration software. Communication parameters such as address, baud rate, and parity can be set to match the network requirements.

Does the device provide isolation?

Yes. The DAT2014 provides 1000 Vac galvanic isolation between the input channels, power supply, and communication lines, ensuring reliable measurements and protection from ground-loop interference.

What is the power supply requirement?

The converter operates from a 10–30 VDC power supply, compatible with standard industrial control panels and systems.

How many channels does it have?

The DAT2014 features 2 isolated input channels, allowing two independent RTD or resistance sensors to be connected simultaneously.

2-Channel RTD to Modbus RTU Converter

Buy Online

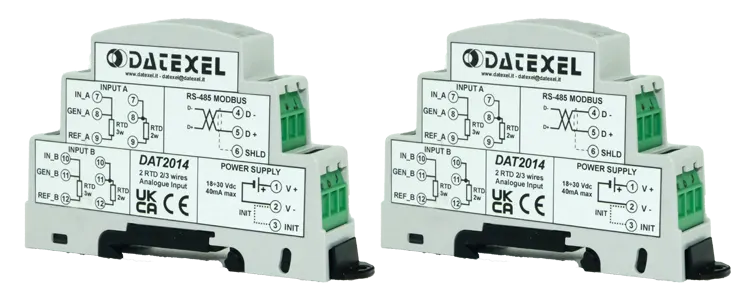

2 channel RTD input to Modbus RTU DAT2014.

• MODBUS RTU / MODBUS ASCII protocol
• 2 isolated input channels
• Configurable input for RTD and Resistance
• Integrated Watch-Dog alarm
• Remotely configurable via RS485
• 1000 Vac galvanic isolation among all sections
• Front-panel LED indicators for power, INIT, and communication
• Connection via screw terminals
• High accuracy and long-term measurement stability
• CE / UKCA mark certified
• DIN rail mounting in compliance with EN-50022

General Description

The DAT2014 is a 2-channel RTD and resistance input to Modbus RTU converter designed for high-accuracy temperature and resistance measurement across an RS-485 network. Each input channel is galvanically isolated, supporting the connection of 2- or 3-wire RTD sensors and resistance inputs with excellent stability over time and temperature.

Communication is managed through the Modbus RTU or Modbus ASCII protocol, allowing seamless integration with PLCs, HMIs, and SCADA systems. The module offers 1000 Vac isolation between input, power supply, and communication lines—eliminating ground-loop effects and ensuring reliable operation even in harsh industrial environments.

To ensure system safety, the DAT2014 includes a Watch-Dog timer alarm, while front-panel LEDs provide visual indication of power status, communication activity, and initialization conditions. The unit can be remotely configured for easy installation and maintenance. Housed in a 1-module DIN rail enclosure made of self-extinguishing plastic, the DAT2014 combines compact design with durability, conforming to EN-50022 standards.

INPUT	OUTPUT	POWER SUPPLY
RTD, or Resistance.	Modbus RTU RS485	Power Supply Voltage 18-30Vdc
		Reverse polarity protection 40 Vdc
CURRENT CONSUMPTION	CONFIGURATION	ISOLATION
Between 30 and 45 mA	PC Programmable	Between All way 1000Vac.
EMC	HOUSING	TEMPERATURE
For Industrial environments	Material self-extinguishing	Operating Temperature 14°F +140°F -10°C +60°C
Immunity EN 61000-6-2	Dimensions W x H x T 3 7/8" x 2 1/2" x 3/4"	Storage Temperature -40°F +185°F-40°C +85°C
Emission EN 6100-6-4	98 x 62 x 18 mm	Humidity (non condensing) 0-90%
	Weight 2 oz 60 g

DAT2014 Datasheet

Buy Online
Applications
Drawings
Modbus Analog Input Modules
Application Note

Input:
RTD	2 Channels Pt100, Pt1000, Ni100, Ni1000
Resistance	0-500 Ohm, 0-3000 Ohm.
Communication:
RS485:	Modbus RTU, Modbus ASCII.
Power Supply:	18 - 30 Vdc. Reverse polarity protection 60 Vdc.
Current Consumption:	40 mA.
Temperature rating:	Operative Temperature 14°F +140°F, - 10°C +60°C Storage Temperature - 40°F +185°F, - 40°C +85°C.
Humidity:	(not condensing) 0-90%.
Housing:	Material self-extinguishing.
Dimensions:	W x L x H 3 7/8" x 2 1/2" x 3/4", 98 x 62 x 18 mm.
Weight:	2 oz 60 g.
EMC.	For industrial environments.
Immunity:	EN 61000-6-2.
Emission:	EN 61000-6-4.
Isolation:	Between Modbus Master, Input, Power supply 1000Vac, 50Hz, 1 Minute.
Configuration:	PC Configurable.

2 Wire RTD Input 0	Sensor on 9 and 8 and short on 7
2 Wire Resistance Input 0	Sensor on 9 and 8 and Short on 7
3 Wire RTD Input 1	Sensor on 12 and 11 and Compensation on 10
3 Wire Resistance Input 1	Sensor on 12 and 11 and Compensation on 10

Power Supply (18-30Vdc).	Positive 1 Negative 2.
RS 485 Slave	Positive (D+)5 Negative (D-) 4 GND 6
Init	For Init short 3 and 2

2 channel RTD to Modbus RTU converter

DAT2014

Analog Inputs.

Power Supply and INIT

Frequently Asked Questions about DAT2014
