4 Channel Thermocouple to Modbus RTU

DAT10016

Datexel DAT10000 Product Range
Buy Online
4 Channel Thermocouple to Modbus RTU DAT10016.

• CE.
• Modbus RTU Slave.
• 4 Thermocouple, mV input.
• RS485 Communication.
• Isolation.

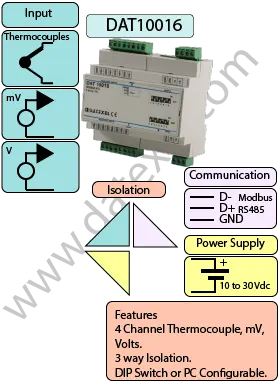

General Description

The DAT10016 Modbus RTU Converter is a 4-channel module designed to acquire signals from thermocouples and millivolt sources and transmit them over a Modbus RTU or Modbus ASCII network. It provides direct integration with PLCs, SCADA systems, and other Modbus master devices.

The DAT10016 supports a wide range of thermocouple types, including K, J, R, S, B, E, T, and N. For millivolt inputs, it accepts ranges of ±50 mV, ±100 mV, and ±250 mV, making it versatile for both sensor and low-level voltage signal acquisition.

The device provides 1500 Vac galvanic isolation between input, output, and power supply, ensuring safe operation in industrial environments. It also includes reverse power protection on the supply input, safeguarding the module from wiring errors.

INPUT OUTPUT POWER SUPPLY
Thermocouple, mV. Modbus RS485 Power Supply Voltage 10-30Vdc
Reverse polarity protection 60Vdc
CURRENT CONSUMPTION CONFIGURATION ISOLATION
Between 30 and 100 mA PC Programmable Between Input/Comms/Power Supply 1500Vac.
DIP Switch Programmable
EMC HOUSING TEMPERATURE
For Industrial environments Material self-extinguishing Operating Temperature 14°F +140°F -10°C +60°C
Immunity EN 61000-6-2 Dimensions W x H x T 4.1/4" x 4 1/2" x 2 1/4" Storage Temperature -40°F +185°F-40°C +85°C
Emission EN 6100-6-4 106 x 112x x 57 mm Humidity (non condensing) 0-90%
Weight 7 oz 200 g

Specifications
Input:
Thermocouples 4 Channels K, J, R, S, B, E, T and N.
mV -50 mV to +50 mV, -100 mV to +100 mV, and -250 mV to +250 mV.
Communication:
RS485: Modbus RTU, Modbus ASCII.
Power Supply: 10 - 30 Vdc. Reverse polarity protection 60 Vdc.
Current Consumption: 30 mA to 45 mA.
Temperature rating: Operative Temperature 14°F +140°F, - 10°C +60°C Storage Temperature - 40°F +185°F, - 40°C +85°C.
Humidity: (not condensing) 0-90%.
Housing: Material self-extinguishing.
Dimensions: W x L x H 4 1/4X 4 1/2 X 2 1/4 inch, 106 x 112 x 57mm.
Weight: 7 oz 200 g.
EMC. For industrial environments.
Immunity: EN 61000-6-2.
Emission: EN 61000-6-4.
Isolation: Between Modbus Master, Input, Power supply 1500Vac, 50Hz, 1 Minute.
Configuration: PC Configurable, DIP Switch.
Drawings

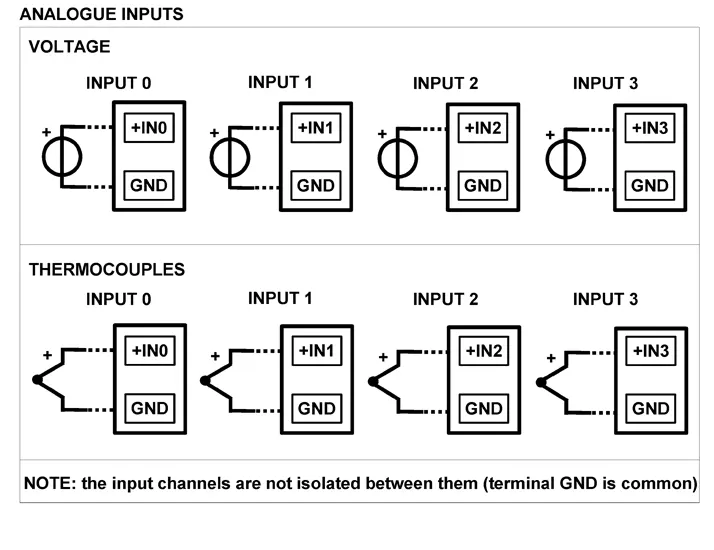

Thermocouple Inputs

mV Input 0 Positive +IN0 Negative GND
mV Input 1 Positive +IN1 Negative GND
mV Input 2 Positive +IN2 Negative GND
mV Input 3 Positive +IN3 Negative GND
Thermocouple Input 0 Positive +IN0 Negative GND
Thermocouple Input 1 Positive +IN1 Negative GND
Thermocouple Input 2 Positive +IN2 Negative GND
Thermocouple Input 3 Positive +IN3 Negative GND
4 Channel Thermocouple to Modbus RTU DAT10016.

Power Supply, and INIT

Power Supply (18-30Vdc). Positive J Negative I.
RS 485 Slave Positive (D+)B Negative (D-) A GND C
RS-232D C GND
  E RX
  F TX
Init Pin D Init Gnd C

4 Channel Thermocouple to Modbus RTU DAT10016.

Applications

Frequently Asked Questions about DAT10016

What is the DAT10016?
The DAT10016 is a 4-channel Modbus RTU/ASCII input module for thermocouples and millivolt signals, converting them into Modbus data for PLCs, SCADA, and other Modbus masters.
Which thermocouple types does it support?
It supports K, J, R, S, B, E, T, and N type thermocouples.
What millivolt ranges does it accept?
The DAT10016 accepts ±50 mV, ±100 mV, and ±250 mV input ranges.
How many channels are available?
The module provides 4 independent input channels.
Does the device provide isolation?
Yes. The DAT10016 provides 1500 Vac galvanic isolation between input, output, and power supply.
Does it include power protection?
Yes. The power supply input includes reverse polarity protection to prevent damage from incorrect wiring.
Back to General Description
