8 Channel Voltage to Modbus RTU.
DAT10017-V

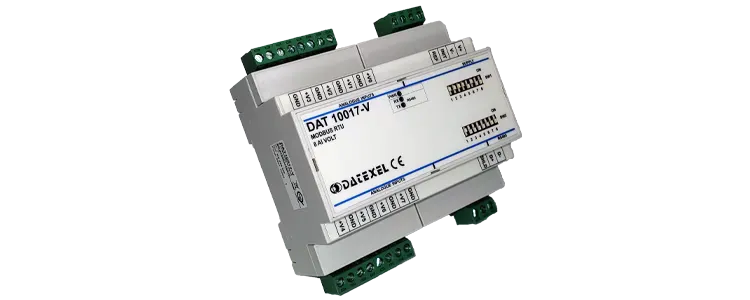

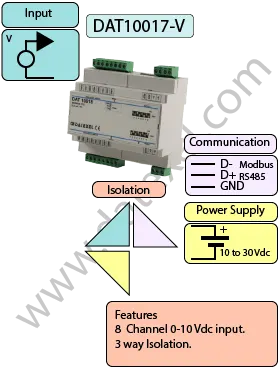

The DAT10017-V is an 8 Channel fully isolated 0-10 V dc to Modbus TCP converter using Ethernet Base 10/100T Communication. The DAT10017-V can accept other voltage ranges such as -10 to +10 Vdc, 2-10 Vdc. The inputs, Ethernet and power supply are isolated from each other up to 1500VAC for 1 minute. The DAT10017-V accepts a wide tolerance on it's power supply from 10 to 30 Vdc and it is mounted on DIN Rail.
| INPUT | OUTPUT | POWER SUPPLY |
|---|---|---|
| 0-10 Vdc | Modbus RTU RS485 | Power Supply Voltage 10-30Vdc |
| -10 to +10 Volts | Modbus ASCII RS485 | Reverse polarity protection 60Vdc |
| CURRENT CONSUMPTION | CONFIGURATION | ISOLATION |
| Between 60 and 115 mA | PC Programmable | Between Input/Comms/Power Supply 1500Vac. |
| EMC | HOUSING | TEMPERATURE |
| For Industrial environments | Material self-extinguishing | Operating Temperature 14°F +140°F -10°C +60°C |
| Immunity EN 61000-6-2 | Dimensions W x H x T 4.1/4" x 4 1/2" x 2 1/4" | Storage Temperature -40°F +185°F-40°C +85°C |
| Emission EN 6100-6-4 | 106 x 112x x 57 mm | Humidity (non condensing) 0-90% |
| Weight 7 oz 200 g |
| Input: | |
| Voltage | 8 Channels. 0-10 Vdc -10 to 10 Vdc , 0-1 Vdc. |
| Communication: | |
| RS485: | Modbus RTU, Modbus ASCII. |
| Power Supply: | 10 - 30 Vdc. Reverse polarity protection 60 Vdc. |
| Current Consumption: | 30 mA to 45 mA. |
| Temperature rating: | Operative Temperature 14°F +140°F, - 10°C +60°C Storage Temperature - 40°F +185°F, - 40°C +85°C. |
| Humidity: | (not condensing) 0-90%. |
| Housing: | Material self-extinguishing. |
| Dimensions: | W x L x H 4 1/4X 4 1/2 X 2 1/4 inch, 106 x 112 x 57mm. |
| Weight: | 7 oz 200 g. |
| EMC. | For industrial environments. |
| Immunity: | EN 61000-6-2. |
| Emission: | EN 61000-6-4. |
| Isolation: | Between Modbus Master, Input, Power supply 1500Vac, 50Hz, 1 Minute. |
| Configuration: | PC Configurable, DIP Switch. |
| Voltage Input 0 | Positive +V0 Negative GND |
| Voltage Input 1 | Positive +V1 Negative GND |
| Voltage Input 2 | Positive +V2 Negative GND |
| Voltage Input 3 | Positive +V3 Negative GND |
| Voltage Input 4 | Positive +V4 Negative GND |
| Voltage Input 5 | Positive +V5 Negative GND |
| Voltage Input 6 | Positive +V6 Negative GND |
| Voltage Input 7 | Positive +V7 Negative GND |
| Power Supply (18-30Vdc). | Positive V+ Negative V-. |
| RS 485 Slave | Positive (D+)B Negative (D-) A GND C |
| Init | Pin Init Ref |
