Modbus to 4-20mA Output

DAT3022

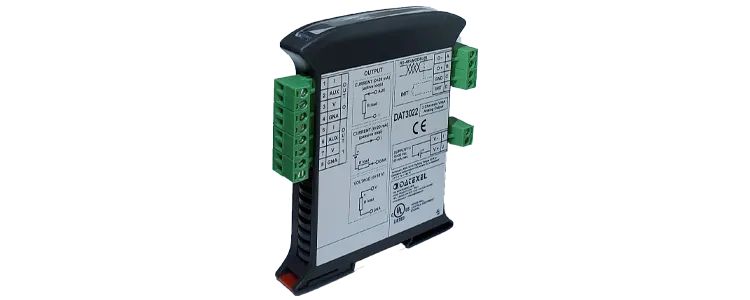

DAT3022 Modbus to 4-20mA Output.
Buy Online
Modbus to 4-20mA Output DAT3022.
• UL, CSA, CE.
• Modbus RTU Slave.
• 2 x 4-20mA, 0-10V Output.
• RS485 Communication.
• Isolation.
General Description

The DAT3022 Modbus to Analog Output Converter is a 2-channel module designed to convert Modbus commands into current or voltage signals. It is ideal for applications where digital Modbus RTU/ASCII control needs to drive analog devices such as actuators, indicators, or control loops.

Each output channel can be configured as 4–20 mA, 0–20 mA, or 0–10 V, providing flexibility for integration into a wide variety of control systems. The outputs are galvanically isolated from the Modbus communication line and the power supply, ensuring safe and reliable operation in industrial environments.

The slew rate is adjustable, allowing users to fine-tune the response time of the analog output to match system requirements. In addition to Modbus RTU over RS-485, the DAT3022 is also available in an RS-232 Modbus ASCII version for serial communication.

INPUT OUTPUT POWER SUPPLY
Modbus RS232 4-20 MA Power Supply Voltage 18-30Vdc
0-10 Volts Reverse polarity protection 60Vdc
CURRENT CONSUMPTION CONFIGURATION ISOLATION
Between 30 and 100 mA PC Programmable Between Input/Comms/Power Supply 1500Vac.
EMC HOUSING TEMPERATURE
For Industrial environments Material self-extinguishing Operating Temperature 14°F +140°F -10°C +60°C
Immunity EN 61000-6-2 Dimensions W x H x T 4" x 4 3/4" x 3/4" Storage Temperature -40°F +185°F-40°C +85°C
Emission EN 6100-6-4 100 x 120 x 22.5 mm Humidity (non condensing) 0-90%
Weight 3 oz 90 g
EMC HOUSING TEMPERATURE
For Industrial environments Material self-extinguishing Operating Temperature 14°F +140°F -10°C +60°C
Immunity EN 61000-6-2 Dimensions W x H x T 4.1/4" x 4 1/2" x 2 1/4" Storage Temperature -40°F +185°F-40°C +85°C
Emission EN 6100-6-4 106 x 112x x 57 mm Humidity (non condensing) 0-90%
Weight 7 oz 200 g

Specifications
Output: 2 Channels
mA 0-20mA , 4-20mA.
Voltage 0-10Volt
Communication:
Modbus RS485
Power Supply: 10 - 30 Vdc. Reverse polarity protection 60 Vdc.
Current Consumption: 30 mA.
Temperature rating: Operative Temperature -4°F +140°F -20°C +60°C
Storage Temperature -40°F +185°F -40°C +85°C.
Humidity: (not condensing) 0-90%.
Housing: Material self-extinguishing.
Dimensions: W x L x H 3 3/4X 3 1/2 X 1 7/8 inch, 90 x 74 x 48mm.
Weight: 7 oz 200 g.
EMC. For industrial environments.
Immunity: EN 61000-6-2.
Emission: EN 61000-6-4.
Isolation: Between Modbus Master, Slave/Power supply 1500Vac, 50Hz, 1 Minute.
Configuration: PC Configurable.

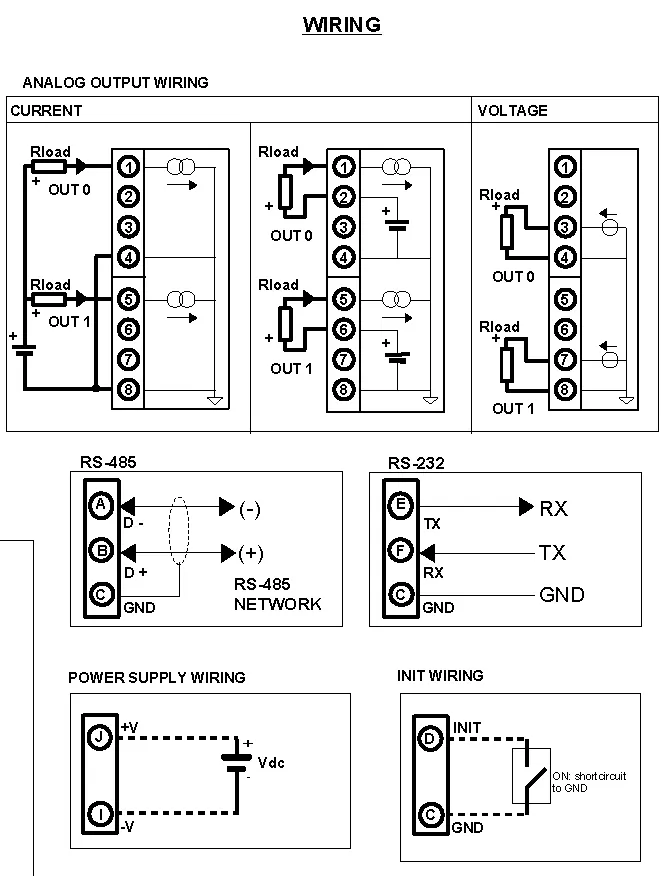

Drawings

Power Supply, Inputs and interrupt

Output
Passive
Current Output 0 Positive 1 Negative 4
Current Output 1 Positive 5 Negative 8
Active
Current Output 0 Positive 1 Negative 2
Current Output 1 Positive 5 Negative 6
Voltage Output 0 Positive 3 Negative 4
Voltage Output 1 Positive 7 Negative 8
Power Supply (18-30Vdc). Positive J Negative I.
RS 485 Slave Positive (D+)B Negative (D-) A GND C
RS-232D C GND
  E RX
  F TX
Init Pin D Init Gnd C

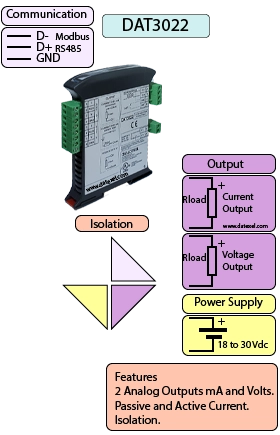

Modbus to 4-20mA Output DAT3022.

Applications

Frequently Asked Questions about DAT3022

What is the DAT3022?
The DAT3022 is a 2-channel converter that transforms Modbus commands into isolated current or voltage analog outputs.
What output signals does it provide?
It can output 4–20 mA, 0–20 mA, or 0–10 V, depending on configuration.
Are the outputs isolated?
Yes. The analog outputs are isolated from both the Modbus communication line and the power supply.
What communication protocols are supported?
The device supports Modbus RTU over RS-485 and is also available in an RS-232 Modbus ASCII version.
How many channels does it have?
The DAT3022 provides 2 independent analog output channels.
