Analog Input Modbus TCP Modules over Ethernet

Modbus TCP Analog Input Modules.
Datexel’s Modbus TCP Analog Input Modules are designed for accurate and reliable data acquisition over Ethernet. These modules are compatible with Modbus TCP masters such as the DAT9000 or any PLC or SCADA system supporting Modbus TCP.

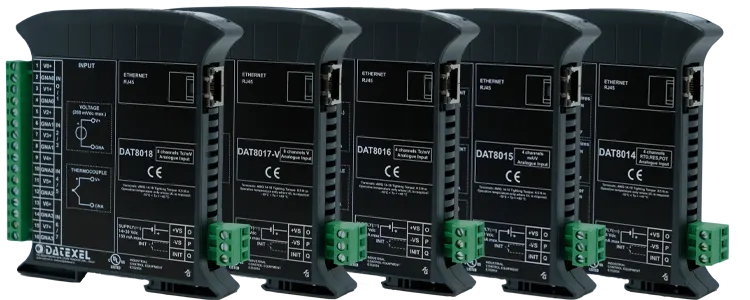

The DAT8000 series supports a wide range of analog inputs including 4-20mA, 0-10V, RTD, Thermocouples, Resistance, and mV. Modules are available in 2, 4, or 8-channel versions:

• DAT8014: 4-channel RTD, resistance, or potentiometer input
• DAT8015: 4-channel current or voltage input
• DAT8016: 4-channel thermocouple and mV input
• DAT8017-I: 8-channel current or 8-channel voltage input
• DAT8018: 8-channel thermocouple and mV input
• DAT8019: 8-channel 2-wire RTD and resistance input

These analog input modules feature electrical isolation and are configured via a built-in web browser. They provide reliable Modbus TCP communication for high-performance industrial systems.

RTD to Modbus TCP
Buy online $235
RTD to Modbus TCP

4 Channel RTD, Potentiometer, and Resistance
Ethernet Modbus TCP

DAT8014 Datasheet
4-20 mA to Modbus TCP
Buy online $223
4-20 mA to Modbus TCP

4 Channel 4-20 mA and Voltage
Ethernet Modbus TCP

DAT8015 Datasheet
Thermocouple to Modbus TCP
Buy online $207
Thermocouple to Modbus TCP

4 Channel Thermocouple and mV
Ethernet Modbus TCP

DAT8016 Datasheet
4-20 mA to Ethernet
Buy online $234
4-20 mA to Ethernet

8 Channel 4-20 mA
Ethernet Modbus TCP

DAT8017-I Datasheet
0-10V to Ethernet
Buy online $234
0-10V to Ethernet

8 Channel 0-10V
Ethernet Modbus TCP

DAT8017-V Datasheet
Thermocouple to Ethernet
Buy online $235
Thermocouple to Ethernet

Input Thermocouple
Ethernet Modbus TCP

DAT8018 Datasheet

RTD to Ethernet
Buy online $317
RTD to Ethernet

8 Channel RTD and Resistance
Ethernet Modbus TCP.

DAT8019 Datasheet

A Modbus TCP Analog Input Module is a device that acquires analog signals (like 4-20mA, voltage, RTD, or thermocouple) and communicates the data over Ethernet using the Modbus TCP protocol.

The DAT8015 accepts 4 analog input channels that can be individually configured for current (4-20mA, ±20mA) or voltage (0-10V, ±10V) input ranges. The DAT8015 can provide loop power to transmitters.

The DAT8000 series can be configured via a built-in web browser. You can set the input type, scaling, and Modbus address for each channel using your PC and a standard Ethernet connection.

Yes, Datexel Modbus TCP Analog Input Modules are fully compatible with PLCs, SCADA systems, and other control systems that support the Modbus TCP protocol.
