Thermocouple to Modbus TCP, Ethernet.

DAT8018

8 Channel Thermocouple to Modbus TCP
Buy Online

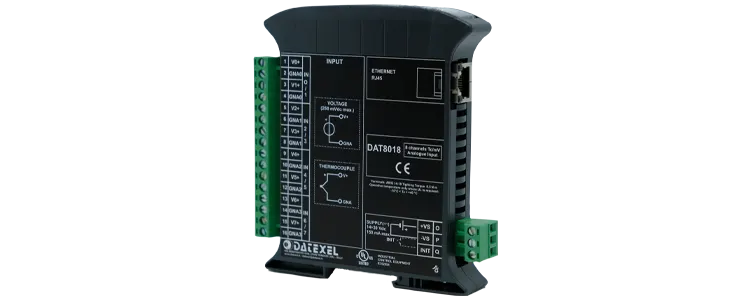

Thermocouple to Modbus, mV to Modbus converter DAT8018.
• Thermocouple to Modbus TCP Ethernet.
• 8 Channel.
• Thermocouple, mV.
• Isolation.

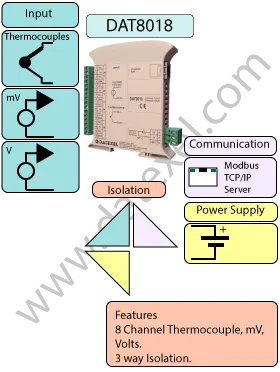

General Description

The DAT8018 is an advanced 8-channel isolated Thermocouple to Modbus TCP converter designed for industrial automation, process monitoring, and laboratory applications. Each channel can accept a wide variety of thermocouples, including J, K, R, S, B, E, T, and N types, as well as millivolt (mV) inputs up to 250 mV, making it highly versatile for temperature measurement and signal conversion.

The DAT8018 ensures reliable and safe operation by providing full electrical isolation between all inputs, Ethernet communication, and the power supply, rated up to 1500 VAC for 1 minute. This level of isolation protects both your equipment and personnel when working in harsh industrial environments.

Equipped with Ethernet 10/100BaseT communication, the DAT8018 enables seamless integration into Modbus TCP networks, allowing for efficient data acquisition, monitoring, and control with PLCs, SCADA systems, and industrial PCs. Its wide power supply tolerance from 10 to 30 Vdc ensures compatibility with a variety of power configurations in control panels or industrial racks.

Designed for easy installation, the DAT8018 is DIN Rail mountable, providing a compact and organized solution for industrial enclosures. Its 8-channel capability allows users to monitor multiple thermocouple or mV signals simultaneously, reducing the need for multiple converters and simplifying network architecture.

Overall, the DAT8018 is a reliable, high-performance solution for industrial temperature monitoring, providing precision, safety, and flexibility in a single device.

INPUT OUTPUT POWER SUPPLY
J, K, R, S, B, E, T, N, Type T/c's 25 to 25 mV. Modbus TCP Ethernet 10/100T Power Supply Voltage 14-30Vdc
-100 to 100mV. -250 to 250 mV. Reverse polarity protection 60Vdc
CURRENT CONSUMPTION CONFIGURATION ISOLATION
Between 60 and 115 mA PC Programmable Between Input/Comms/Power Supply 1500Vac.
EMC HOUSING TEMPERATURE
For Industrial environments Material self-extinguishing Operating Temperature 14°F +140°F -10°C +60°C
Immunity EN 61000-6-2 Dimensions W x H x T 4 x 4 3/4" x 3/4" Storage Temperature -40°F +185°F-40°C +85°C
Emission EN 6100-6-4 100 x 120 x 22.5 mm Humidity (non condensing) 0-90%
Weight 6 oz 160 g

Specifications
Input:
Channels 8 Channels.
Thermocouples J, K, R, S, B, E, T, and N.
mV -25 to 25 mV, -100 to 100mV, -250 to 250 mV, -1V to 1 V.
Communication:
Ethernet 10/100T: Modbus TCP.
Power Supply: 14 - 30 Vdc. Reverse polarity protection 60 Vdc.
Current Consumption: 60 mA Standby 115 mA Max.
Temperature rating: Operative Temperature 14°F +140°F -10°C +60°C Storage Temperature - 40°F +185°F - 40°C +85°C.
Humidity: (not condensing) 0-90%.
Housing: Material self-extinguishing.
Dimensions: W x H x T 4 3/4 x 4 x 7/8 inch, 120 x 100 x 22,5mm.
Weight: 6 oz 160 g.
EMC. For industrial environments.
Immunity: EN 61000-6-2.
Emission: EN 61000-6-4.
Isolation: Input, Each Channel, Power Supply, 1500Vac, 50Hz, 1 Minute.
Configuration: PC Configurable.
Drawings

DAT8018 Power Supply and INIT Wiring Diagram

Power Supply (18-30Vdc). Positive O Negative P.
Init Pin Q Init Gnd P
DAT8016 power supply and Init

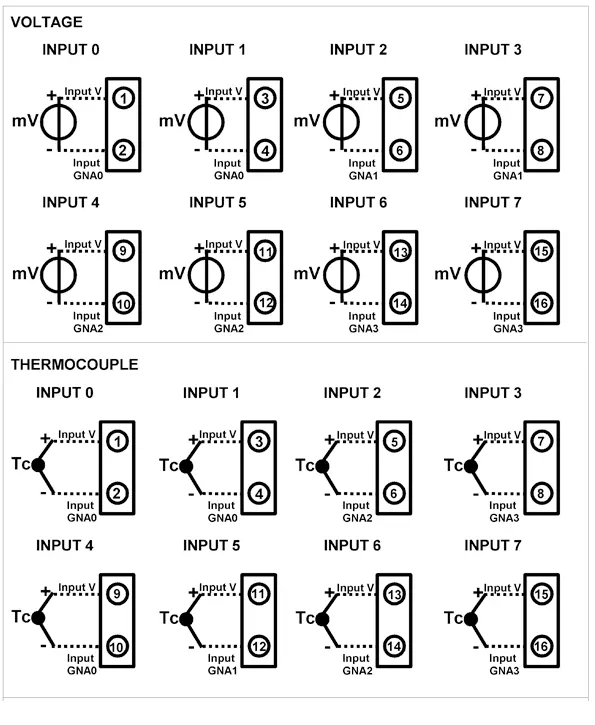

Input Terminals

mV Input
Input 0 Positive 1 Negative 2
Input 1 Positive 3 Negative 4
Input 2 Positive 5 Negative 6
Input 3 Positive 7 Negative 8
Input 4 Positive 9 Negative 10
Input 5 Positive 11 Negative 12
Input 6 Positive 13 Negative 14
Input 7 Positive 15 Negative 16
Thermocouple Input
Input 0 Positive 1 Negative 2
Input 1 Positive 3 Negative 4
Input 2 Positive 5 Negative 6
Input 3 Positive 7 Negative 8
Input 4 Positive 9 Negative 10
Input 5 Positive 11 Negative 12
Input 6 Positive 13 Negative 14
Input 7 Positive 15 Negative 16
MODBUS TCP Ethernet 8 Channel Thermocouple DAT8018.

Applications
Frequently Asked Questions
How many channels does the DAT8018 support?
The DAT8018 supports 8 fully isolated channels, allowing you to monitor multiple thermocouples or mV inputs simultaneously.
What types of thermocouples can the DAT8018 accept?
The DAT8018 accepts J, K, R, S, B, E, T, and N type thermocouples, as well as millivolt inputs up to 250 mV.
Is the DAT8018 fully isolated?
Yes, the inputs, Ethernet communication, and power supply are isolated from each other up to 1500 VAC for 1 minute, ensuring safe operation in industrial environments.
What is the power supply range for the DAT8018?
The DAT8018 operates with a wide DC power supply range from 10 to 30 Vdc, making it compatible with various industrial setups.
How is the DAT8018 mounted?
The DAT8018 is designed for DIN Rail mounting, providing easy installation in control panels and enclosures.
Which communication protocol does the DAT8018 use?
The DAT8018 uses Modbus TCP over Ethernet 10/100BaseT, compatible with SCADA systems, PLCs, and data acquisition software.
Can the DAT8018 be used for industrial process monitoring?
Yes, it is ideal for process control, laboratory measurements, and industrial automation applications where multiple thermocouple or mV signals need to be monitored digitally with isolation.
