Modbus RTU Master with Digital IO
Obsolete Product.

DAT9000IO

Datexel Product Range
Please see the DAT9011 as a replacement Product.
Modbus RTU Master with Digital IO.
• Modbus RS485 Master.
• Modbus RS485, RS232 Slave.
• Modbus Ethernet 10 Base-T Modbus TCP.
• 4 Digital Inputs.
• 2 SPDT Relay Outputs.
• Function Block Programming.
General Description

The Modbus RTU Master with Digital IOis a Data Acquisition and controller unit that can be used as a Modbus Master or Modbus Slave. The DAT9000IO also has 4 Digital inputs and 2 Relay Outputs. The input are digital on state above 10 Volts and off below 3 Volts. The 2 relays are SPDT. The DAT9000IO also has an Ethernet 10 Base-T MODBUS TCP Interface and an RS232 port. The DAT9000IO is capable of processing logical and mathematical functions enabling the DAT9000IO to provide Alarms, Linearization, Scaling, Averaging and Square root extraction to name a few.

INPUT OUTPUT POWER SUPPLY
4 x Digital Input. 2 Relays. Power Supply Voltage 10-30Vdc
Modbus Master/Slave RS485/RS232 Modbus TCP Ethernet 10/100T Reverse polarity protection 60Vdc
Modbus TCP Ethernet 10/100T Modbus Master/Slave RS485/RS232
CURRENT CONSUMPTION CONFIGURATION ISOLATION
Between 45 and 80 mA PC Programmable Between Input/Comms/Power Supply 1500Vac.
EMC HOUSING TEMPERATURE
For Industrial environments Material self-extinguishing Operating Temperature -4°F +140°F -20°C +60°C
Immunity EN 61000-6-2 Dimensions W x H x T 4" x 4 3/4 " x 7/8 " Storage Temperature -40°F +185°F-40°C +85°C
Emission EN 6100-6-4 100 x 120x x 22.5 mm Humidity (non condensing) 0-90%
Weight 3 oz 90 g

Specifications
Input 4 Channels.
Threshold 0-3 Volts OFF 10-30V On.
Frequency 300 Hz Maximum.
Output 2 Relays SPDT 2 Amp at 250 V.
Communication:
RS485: Port 1 Modbus RTU Master, Port 0 Modbus RTU Slave.
RS232: Modbus RTU Slave.
Ethernet: Ethernet 10Base-T, Modbus TCP.
Power Supply: Voltage 10 - 30 Vdc. Reverse polarity protection 60 Vdc.
Current Consumption: 80 mA max.
Temperature rating: Operative Temperature -4°F +140°F -20°C +60°C
Storage Temperature -40°F +185°F -40°C +85°C.
Humidity: (none condensing) 0-90%.
Housing: Material self-extinguishing.
Dimensions: W x L x H 4 x 4 3/4 x 1inch, 100 x 120 x 22.5mm.
Weight: 7 oz 200 g.
EMC. For industrial environments.
Immunity: EN 61000-6-2.
Emission: EN 61000-6-4.
Isolation: 1500Vac, 50Hz, 1 Minute.
Configuration: PC Configurable, DIP Switches.
Drawings

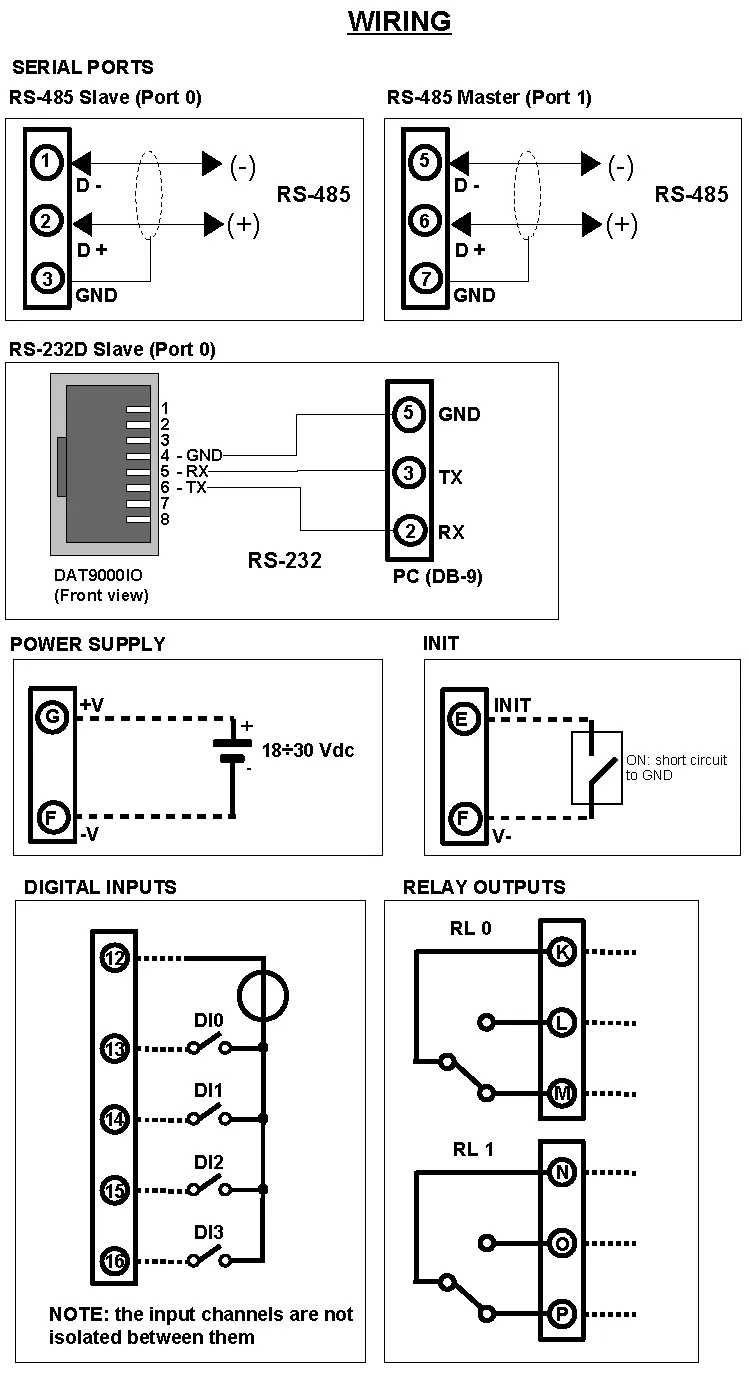

DAT9000IO Wiring Diagram

RS-485 Slave Master
D- Port 0 Pin 1 Port 1 Pin 5
D+ Port 0 Pin 2 Port 1 Pin 6
GND Port 0 GND Port 1 GND
RS-232D Front view PC DB9
GND Port 0 Pin 4 Pin 5
RX Port 0 Pin 5 Pin 3
TX Port 0 Pin 6 Pin 2
Power Supply (18-30Vdc). Positive G Negative F.
INIT Short pin E to F
Digital Input Common Input
DI0 Pin 12 Pin 13
DI1 Pin 12 Pin 14
DI2 Pin 12 Pin 15
DI3 Pin 12 Pin 16
Relay 0 K NO L NC M
Relay 1 N NO O NC P
DAT9000IO wiring Diagram.
