Modbus Controllers.

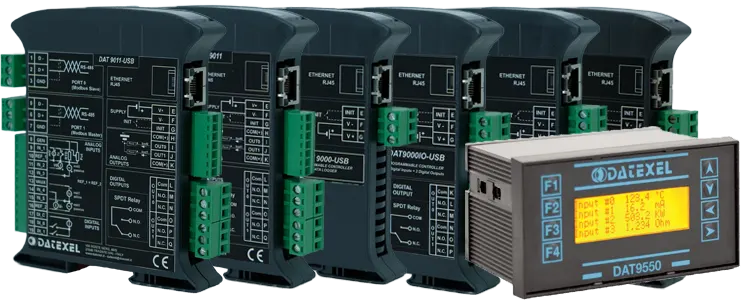

Datexel offers a full line of Modbus controllers for RTU and TCP communication networks. These advanced Modbus master devices support flexible I/O, remote data acquisition, and integrated data logging. The DAT9000 series includes models with RS485, RS232, and Ethernet ports, ideal for managing Modbus RTU and Modbus TCP protocols. Variants like the DAT9000IO add digital I/O, while the DAT9000DL adds Data logging. The DAT9000DLIO combines both features in one unit.

The DAT9011 is a versatile Modbus RTU master controller with two analog inputs (supporting thermocouples, RTDs, potentiometers, mA, and mV), two current analog outputs (4-20 mA ), digital inputs, and dual relay outputs. The DAT9011DL provides logging to USB drives (up to 8 GB), supporting both internal and external Modbus register logging.

All Modbus controller models are configured via Ethernet using Datexel's free development software, available from our Download Page.

MODBUS RTU Masters and Slaves DAT9000 Series with digital IO and Data Logging. DAT9011 has Analog IO and DAT9550 is a Remote Modbus Display.

Modbus RTU Master/Slave and Controller
Buy online $342

Input None
Output RS232, RS485, Modbus TCP

DAT9000 Datasheet

Modbus RTU Datalogger DAT9000DL
Buy online $402

Input None
Output RS232, RS485, Modbus TCP, Logging.

DAT9000DL Datasheet DAT9000USB Datasheet

Modbus Data Logger with Digital IO
Buy online $513

Input 4 Digital Inputs
Output 2 Relays, RS232, RS485, Modbus TCP and Logging.

DAT9000DLIO Datasheet DAT9000USBIO PDF Datasheet

Modbus RTU Master with Analog IO
Buy online $540

Input V, I, RTD, T/C's, 2 Digital.
Output 2 x 4-20mA, 2 x Relays

DAT9011 Datasheet

Modbus Controller and Data Logger
Buy online $643

Input V, I, RTD, T/C's, 2 Digital.
Output 2 x 4-20mA, 2 x Relays

DAT9011DL Datasheet DAT9011USB PDF Datasheet

Modbus Master/Slave Remote Display
Buy online $257

Input Modbus RS485, RS232,
Output 132 X 32 Pixels with back light.

DAT9550 Datasheet

Yes, the DAT9011 Modbus controller can read two Modbus registers and convert them into two 4-20 mA outputs.

You can use the DAT9000 Modbus master to read multiple registers and send the values to a DAT3024ISO module, which provides up to four 4-20 mA outputs.

Yes, both the DAT9000 and DAT9011 can work with a DAT3024ISO to provide up to four analog outputs, which can be configured for either 4-20 mA or 0-10 V signals.

You can use one DAT9000 controller to read 20 Modbus registers and then use five DAT3024ISO modules to convert them into twenty 4-20 mA or 0-10 V outputs.

Yes, the DAT9000 and DAT9011 can read 32-bit floating point registers and convert the value to a 4-20 mA analog output.

Modbus Controllers.

Can the Modbus controller convert a Modbus register to a 4-20 mA?

What happens if I want to read more than two Modbus registers?

Can the DAT9011 provide a 0-10V output?

What happens if I need to convert 20 Modbus registers to analog outputs?

Can I convert floating point Modbus registers into 4-20 mA signals?
